Full-automatic Toilet Paper Roll Production Line

Full Automatic Toilet Paper Production Line 1.Toilet Paper Rewinding Machine The rewinding machine with single embossing is used for rewinding jumbo paper to smaller roll, ready for cutting in next cutting step. It can automatically gluing, cutting when roll finished, has synchronous...

Full Automatic Toilet Paper Production Line



1.Toilet Paper Rewinding Machine


The rewinding machine with single embossing is used for rewinding jumbo paper to smaller roll, ready for cutting in next cutting step. It can automatically gluing, cutting when roll finished, has synchronous transmission system. Our machine can load three roll (three layers)  the the same time. Pneumatic paper loading system is equipped to save human labor.


Introduction:

Our factory original produce automatic toilet paper rewinder adopting international advanced  PLC computer programming technology, and frequency adjustable speed, and electronic brake and the configuration has touch type picture human-computer interface system, latest development free core volume paper forming complex volume system, reached rewind volume effect with core or no core , one machine more with more usage, makes machine in years of market put using can full upgrade, makes the operation more convenient and shortcut, greatly improve the production efficiency.


Features:

1. This model is designed with PLC control system, fully automatic in production process, the function is complete and the production speed is high. The finished rewinding process implements tight first and loose later and different stage loose degree, resolve paper and core apart in the long storage time.

2. It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.

3. When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.

4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes. Automatic alarm for breaking off of paper.

5. Equipped separate tension control for each unwinding jumbo roll.

6. It is convenient to change the feature to produce any other core pipe winding.

7. Left paper remind after sealing of product for convenient use.

8. Jumbo roll stand is installed by pneumatic.

9. Stepless adjustment , every function can independent operation.

10. Three-layer horizontal paper remove shelf, pneumatic type wide belt  for paper feeder, each group of original paper shelf has independent tension adjustment device ; point-to-point embossing, pattern is distinct and beautiful, light weight, can be configured according to the user's needs for steel to steel embossing ;inching switch for the traction of the original paper, the operation is simple, safe and practical.


Technical Specification:

Name

Automatic toilet paper rewinding cutting machine

Model

MJY-1880

Original paper

2100mm

Process capacity

2.5 T/D

Finished paper

40-240(mm)

Original paper

external diameter

1100mm(can be changed)

Finished product dia

Adjustable

Program controller

PLC computer Program

Produce speed

0-200meter/min

Embossing parts

Steel roller,wool roller,Rubber rollers

Embossing situation

No Embossing ,single Embossing,double Embossing

Machine conveyor

Continuously variable transmission.

Paper remove shelf

1-4  layers

Brake

Electric,pneumatic control

Main power

5.5kw+1.5kw

Dimension

6500*3500*1800mm

Total weight

2500kg

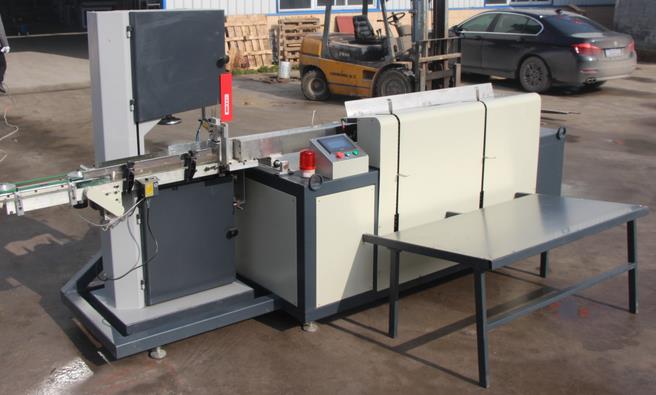

2.Automatic Toilet Paper Cutting Machine



The machine is used for cutting long rolls into small rolls, ready for next packing step.

Features:

1. LCD touchable screen is used to realize humanized operation, easy to operation and adjust.

2. No workers is needed in the cutting process, very safe.

3. The machine is suitable for box drawing paper, facial paper cutting, cutting length for facial paper can be customized.

4. It is easy to set cutting number and cutting length and can be connected with automatic packing machine.

5. The machine settings are advanced and stable. Control parts are mainly used good quality import parts.


Technical Specification:

Name

Automatic toilet paper cutting machine

Material Length

0-300mm(Can be customized)

Raw material diameter

65-130mm

Paper size

Can be set

Product dimension error

+-1mm

Control system

PLC control,servo drive,touch screen operation

Cutting & swing structure

Cam structure

Production Speed

50-100cuts/min

Power supply

AC380v50hz

Required air compressor

0.5MPA (Customer owned)

Weight

1100kg


3.Automatic Toilet Paper Single Roll Packing Machine



Features:

1. Full servo control system, all independent programming, all controlled by the software to facilitate the function of restructuring and technological upgrading,advanced.

2 human-machine operation, convenient and quick parameter setting.

3. Fault self-diagnosis function, clear failure display.

4. Sensitivity photoelectric eye tracking, digital input cut position which makes the cutting position more accurate.

5. automatically recognizes the bag length according to tissue products, machine adjustment is simple.

6.Positioned stop function, without sticking knife, CPP and CPP-sided heat sealing film and color packaging films can be packaged, not wasting film.

7. Simple driving system, reliable working, convenient maintenance.

8. It can automatically connect with roll Cutter, without manual working,  saving labor costs.

9. No product machine will stop,will not have empty bag. never waste film.


Technical Specification:

Item

MJ-500TS

Packing speed

0-150 /min

Bag width

60-200mm

Bag length

130-350mm

Tissue height

Max.130mm

Film width

Max.450mm

Machine voltage

220V

Power

3.0KW 50/60HZ

Machine size

L5020*W720*H1450mm

Weight

750KG


4.Automatic Toilet Paper Multi-rolls Packing Machine



Brief Introduction:

The machine is used for packing 6, 10, 12 paper rolls and can be connected to automatic cutting machine to realize automatic sealing.


Features:

1. PLC programming control and LCD. The machine settings can be preset.

2. The machine only need one worker to operate.

3.Stable performance and long life span.

4. With sensor to guarantee safety.

5. One machine can be use for pack all size of products.


Technical Specification:

Model

MJ-JZ

Bagging method

Push palm type

Air compressor

0.6MPA (Customer owned)

Power supply

380v50hz

Packing speed

10-20pcs/min

Diameter packing size

Single   diameter:70-120mm

Height packing size

Single   height:100-120mm

Total power

2kw

Dimension

5000*1000*1500mm (L*W*H)

Weight

1000kg
