Semi-atutomatic Facial Tissue Production Line

Facial Tissue Paper Production Line The facial tissue paper production line contains the parent paper roll cutting machine,facial tissue paper machine and facial tissue paper packing machine,surely customers also can buy the jumbo roll paper that finishing cutting already from the market...

Facial Tissue Paper Production Line

The facial tissue paper production line contains the parent paper roll cutting machine,facial tissue paper machine and facial tissue paper packing machine,surely customers also can buy the jumbo roll paper that finishing cutting already from the market directly.


1.Jumbo Parent Roll Cutting Machine



Introduction:

The Jumbo parent roll paper slitting machine is usually used to cut the toilet jumbo roll paper into smaller jumbo rolls,then these jumbo rolls can be used as the raw material of the napkin paper machine, facial tissue paper machine,pocket tissue paper machine to make the further final life-use paper.

This machine adopts gas expanded shaft Volume,Synchronizing conveyor ,less blade loss,low noise,slitting width can be adjustable freely ,high pressure fan will take away the edge waste paper.


Technical Specification:

Machine Model

MJ-1092

MJ-1575

MJ-1880

Original paper width

1300mm

1760mm

2150mm

Slitting width

Slitting width can be adjustable by cutting blades.

Finish paper diameter

Slitting diameter can be adjustable

Cutting Speed

0-150m/min

Power

1.5kw

2.2kw

3kw

Dimension

3000*1900*1000mm

3600*2000*1000mm

4300*2200*1000mm

Weight

950kg

1000kg

1100kg


Features:

1.The machine is suitable for different density of raw paper.

2.Adopt screw turning knife to cut, Strong cutting blades and easy turning. No noise and shake.

3.Controlled with electric counter to ensure weight of the finished products.

4.All steel rollers rolling the pattern,the pattern is obvious. Also the steel roller or the wool roller is acceptable, has a long service life .

5.Special saw belt to keep section in good order. The belt is easy to maintain.

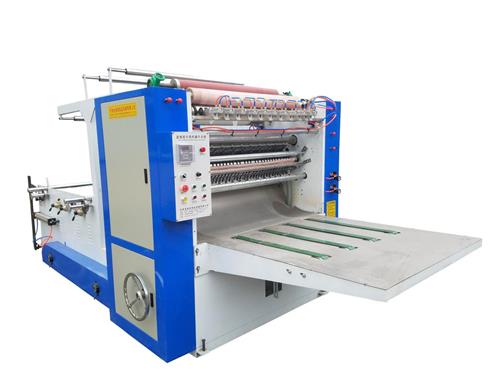

2.Facial Tissue Paper Folding and Cutting Machine



Introduction:

Automatic facial tissue paper machine is used to cut the jumbo roll paper by cutting blades roller shear,interaction fold into the chain of rectangle tissue.

This machine adopts the vacuum adsorption,automatic folding counting function,high speed, folded neatly,easy operation, etc.


Features:

1.The machine adopts vacuum suction, automatic counting,with high speed, accurate counting number,it is the advanced equipment of facial tissues paper production.

2.The machine is equipped with three tension adjustment devices,in order to ensure the dimensional accuracy of the finished folding.

3.The machine comes with fringe embossing and whole flower patterns embossing of two kinds of embossing functions so that meet various customers’ production requirements.

4.This machine has automatic shutdown function once paper breaks, not only greatly reduce the wastage caused by paper breaks, but also to ensure the safety of the production process.


Technical Data:

Machine Model

MJ-3L

Product Size(mm)

200x200±2mm, Other size are available

Paper Diameter(mm)

φ1100mm,Other size are available

Paper Core Inner Diameter

76.2mm ,Other size are available

Speed

0-100m /min

Controller

Electromagnetic speed

Embossing Device

Steel to steel embossing

Embossing Roller End

Felt roller, wool roller ,rubber roller , steel roller

Blank Lines

Steel on steel , the independent regulator

Cutting System

Pneumatic point cut

Vacuum System

7.5kw

Pneumatic System

3 air compressor ,at least the pressure 5kg/cm2Pa

Host Power

3kw

Dimensions

5150*1400*1920mm

Weight

1200kg

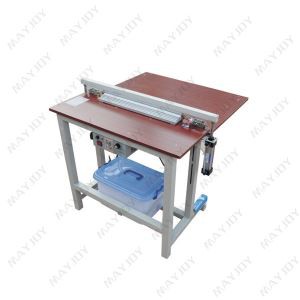

3.Facial Tissue Paper Packing Machine



Introduction:

Semi-automatic packing machine is composed of two parts:bagging machine and ironing machine.It is suitable for soft facial tissue paper,napkin paper,towel paper and other similar square paper packing.


Features:

1.The speed can be adjustable,bagging speed is up to 20-30packs/min,flat ironing speed is up to 40packs/min.

2.The size of facial tissue paper can be adjustable,packaging range, Length:100-200mm,width:90-140mm, height:30-100mm.

3.Hot sealing temperature can be adjustable.You can choose different thickness of CPP material packaging bags.

4.The integrated circuit PLC control,easy to operate.

5.The packing machine uses the first set of bags at both ends of the flat hot form of packaging.The appearance of the final facial tissue paper can reach the packing effect of three-dimensional packaging machine.


Technical Specification:

Machine Name

Facial tissue paper packing and Ironing Machine

Packing Speed

20-30bags/min

Packing film material

CPP,PE,OPP,PT,KOP heat sealing film

Packing Specification

Length:100-200mm,Width:100-120mm   Height:40-100mm

Power Voltage

380v50hz

Power

1.5kw

Dimension

2000*1000*1300mm/2600*1600*1000m

Weight

400kg+200kg
