Napkin Production Machine

Napkin production machine The napkin production machine contains jumbo roll paper cutting machine,napkin paper folding machine and napkin paper packing machine. Surely the customers can buy the small jumbo roll paper from the market that finished cutting already. 1. Jumbo...

 Napkin production machine

The napkin production machine contains jumbo roll paper cutting machine,napkin paper folding machine and napkin paper packing machine. Surely the customers can buy the small jumbo roll paper from the market that finished cutting already.


1. Jumbo Roll Paper Cutting Machine



Introduction:

The parent roll paper cutting machine is usually used to cut the toilet jumbo roll paper into smaller jumbo roll,then these jumbo rolls can be used as the raw material of the napkin paper machine ,facial tissue paper machine and pocket tissue paper machine to make further daily life paper.

This machine adopts gas expanded shaft Volume,Synchronizing conveyor ,less blade loss,low noise,slitting width can be adjustable freely ,high pressure fan will take away the edge waste paper.


Technical Specification:

Machine Model

1092

1575

1880

Original paper width

1300mm

1760mm

2150mm

Slitting width

Cutting  width can be adjustable

Finish paper dia

Cutting width can be adjustable by cutting blades.

Speed

0-150m/min

Power

1.5kw

2.2kw

3kw

Dimension

3000*1900*1000mm

3600*2000*1000mm

4300*2200*1000mm

Weight

950kg

1000kg

1100kg


Features:

1. Unwind with tension to suit different density of raw paper.

2. Adopt screw turning knife to cut, Strong knife-blade and easy turning. No noise and shake.

3. Controlled with electric counter to ensure weight of the finished products.

4. All steel rollers the pattern,the pattern is obvious. Also the rubber roller or the wool roller is acceptable, with long service life .

5. Use special saw belt to keep section in good order. The belt is easy to maintain.


2.Napkin Paper Folding Embossing Machine



Introduction

The napkin folding embossing machine is used for processing the jumbo roll paper by embossing,folding,automatic electric counting,cutting into square napkin,with automatic embossing folding, no need manual folding ,the embossing patterns can be made by customer’s request to make different clear and beautiful Patterns.

Based on the design and production capacity, the machine is mainly used to produce napkin tissue paper. According to different demand, it is able to produce different colors napkin tissue paper, and the embossing design and color printing design can be decided by the customer. It is especially apply in printing the patterns, brand logo, etc. And it is made up of stepless speed regulation technology, convey system, color printing, embossing system, folding system, counting system, cutting system, etc. It can be used with pneumatic working parts, pure and various colors printing system according to the consumers' demand.


Features:

1.Automatic folding embossing counting,cutting.

2.Entire column, convenient for packing

3.Folding place Positioning reliable,unified shaping size

4.We can make different specification models according to customer’s requirements

5.The embossing rollers can be steel to steel and steel to wool,the embossing patterns are clear and various.

6.Color printing function is selectional.


Technical Specification:

Machine Mode

MJN Serial

Unfolding Size

200*200—460*460 mm (also customization available)

Folded size

100*100-230*230mm

Raw paper diameter

≤φ1200

Raw paper Core inner diameter

75mm Standard(Other size are available)

Embossing Rollers

Steel to steel,steel to wool

Counting System

Automatic Electronic Counting

Power

2KW+2KW

Dimension

3200*1000*1800mm

Weight

850-1200KG

Speed

0—800 pcs/minute

Use of power

Frequency Control ,electyomagnetic governor

Transmission

6 Chains

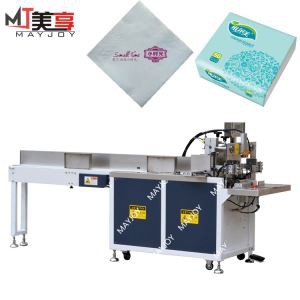

3.Napkin Paper Packing Machine


When the napkin sheets are delivered to the front of paper push cylinder, put the packing bag to the output mouth; press the button, the paper will be pushed into the bag, meanwhile, the sealing is finished.


Features:

1. Work continuously,one-time finish sealing . High working efficiency and low cost.

2. Easy operation , low requirement to the workers.

3. PLC computer control, accurate control to the position; easy to change the operation parameter and settings.

4. The main control part adopts imported good quality materials. Other part is in accordance with the national good quality standard part.

5. Stable and good performance.


Technical Specification:

Model

MJ-2030A

Air Pressure

0.4-0.6Mpa

Voltage

220V 50/60HZ

Packing speed

15bags/min

Max. packing size

250*200*100mm (L*W*H)

Min. packing size

150*150*40mm(L*W*H)

Packing bag material

Composite film OPP/PE

Power

0.4kw

Weight

550kg

Dimension

2500*800*1200mm(L*W*H)

Application

Napkin paper,Facial tissue paper
