Paper Slitting Machine

1.Mayjoy provides you with three models of the paper slitting machine
2.Touch screen HMI,easy for operation and maintenance.
3.Speed:0-150m/min

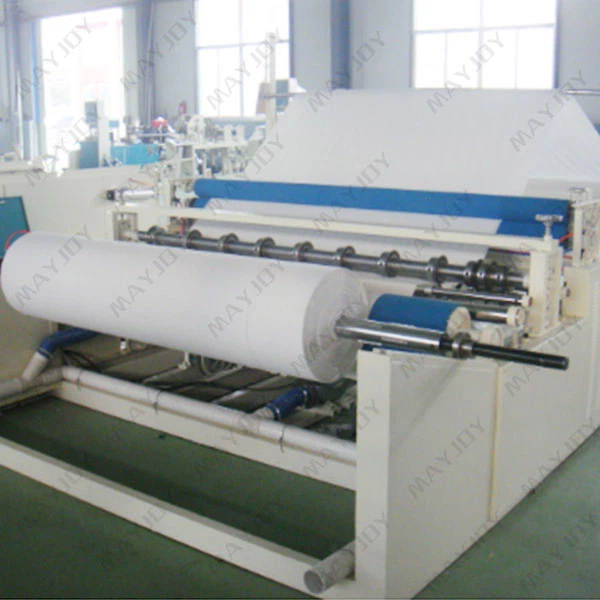

Paper Slitting Machine

Introduction:

The paper slitter is a paper processing equipment that slits and rewinds wide webs into rolls of varying widths and diameters. Widely used in the paper processing industry or prepress printing machinery.

The paper slitting machine is composed of a frame, a transmission system, a receiving and discharging machine and a tension control device, a traction member, a slitting bracket, a waste winding and a discharge device. It divides the raw materials into several separate units.


Technical Specification:

Machine Model

1092

1575

1880

Original paper width

1300mm

1760mm

2150mm

Slitting width

Slitting width can adjustment.

Finish paper dia

Slitting    width can be adjustment by cutting blades.

Speed

0-150m/min

Power

1.5kw

2.2kw

3kw

Dimension

3000*1900*1000mm

3600*2000*1000mm

4300*2200*1000mm


Performance and characteristics of the paper slitter:

1. Paper slitting machine is controlled by PLC and touch screen, magnetic powder clutch tension control, center winding method.

2. The host computer adopts frequency conversion speed regulation. It can automatically count meter and alarm stop. The tension numbers are all displayed on the touch screen.

3. Unwinding uses photoelectric automatic correction (or ultrasonic correction) to correct the neatness of the paper, so that the irregular material can be cut normally.

4. Round knife (or straight knife) slitting, automatic waste discharge device.


Product Advantages:

1) The newest technology from German and Japan were adopted in the slitting machine

2) Most reliable international famous brand components adopt for this slitter machine

3) Touch screen HMI,easy for operation and maintenance.

4) High speed,heavy duty and high precision slitting rewinding system design.


Functions of the paper slitting machine

1.Three backstands, pneumatic jumbo roll loading, and pneumatically wide belt paper unwinding driving, and individual web tension control unit for each jumbo roll.

2. The machine is featured of good performance, compact structure, and stable running, easy operation. The finished products has good winding profiles, which make it a good equipment for the paper mills and textile factories, and a high reputation from the customers.

3. The machine can be equipped with double calendering rolls, making paper softer.
