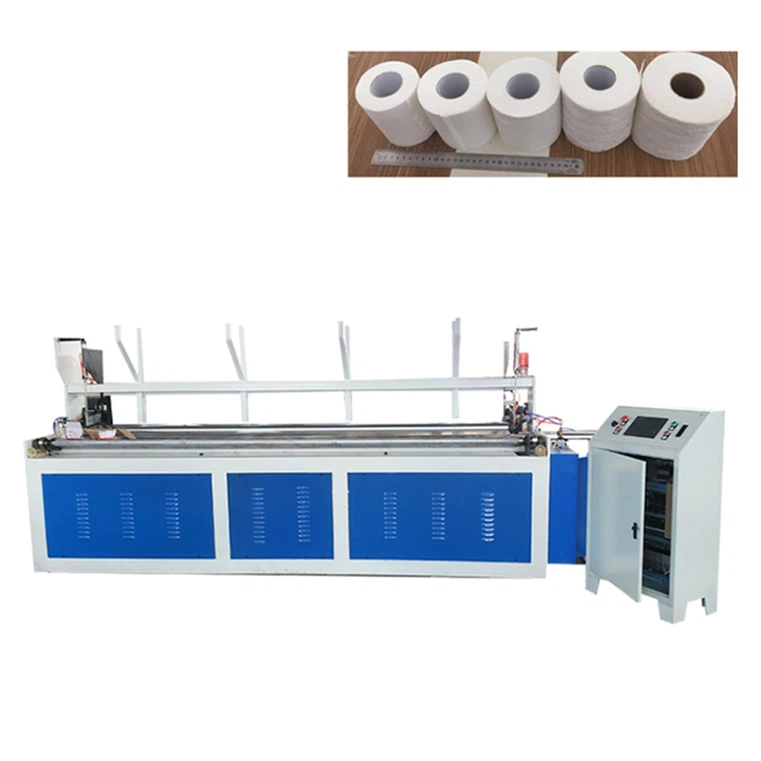

Toilet Roll Making Machine

Toilet Paper Making Machine
1.This machine is used to make toilet paper rolls.
2.Finish Paper Core:φ30~55mm
3.Simple and safe operation.

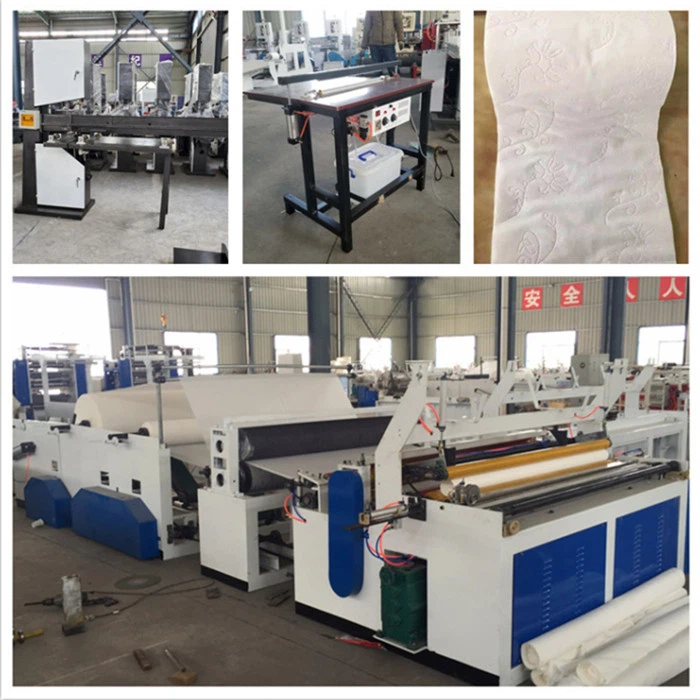

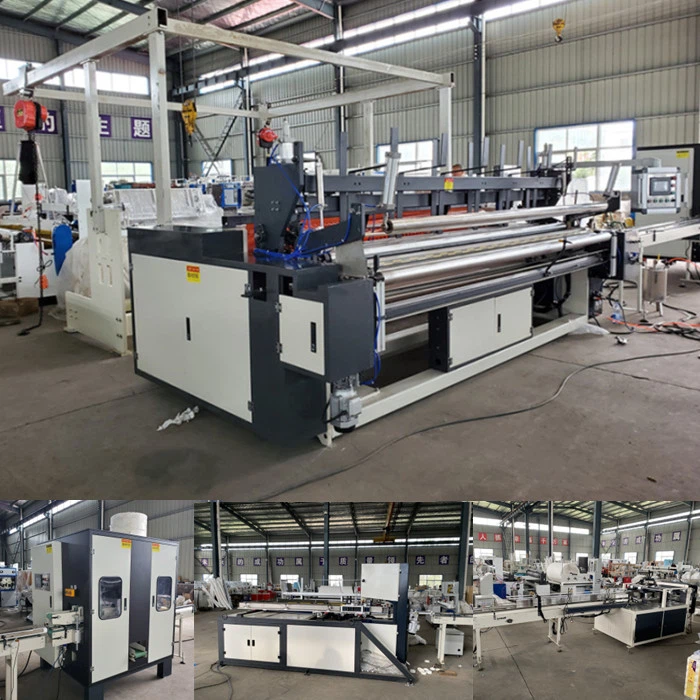

Toilet Roll Making Machine

Product Introduction

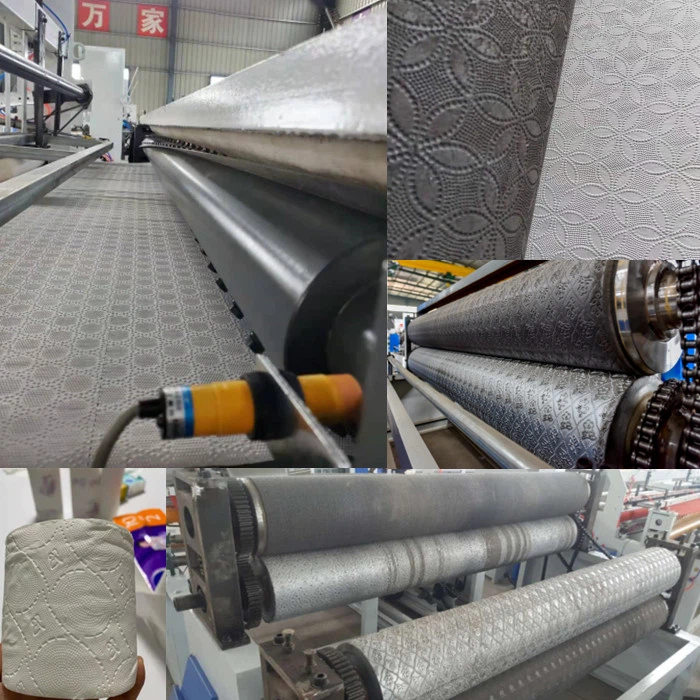

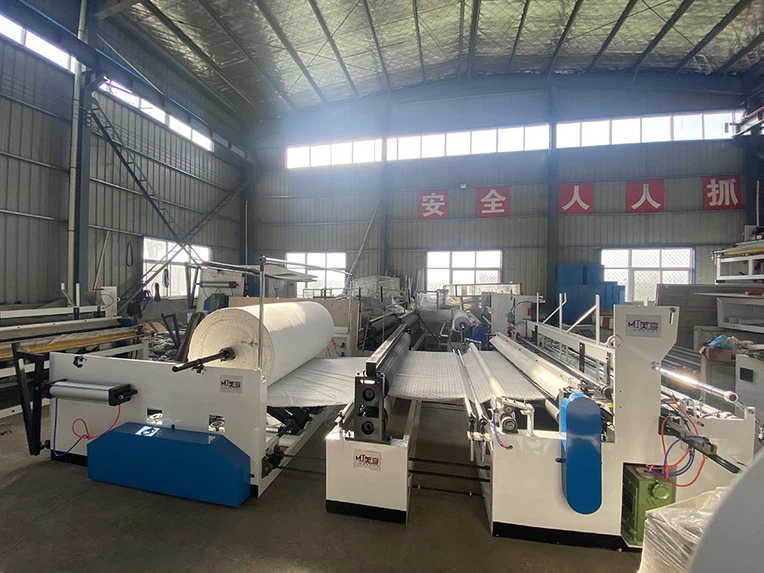

The toilet roll making machine has core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy  to operate, lower the man cost. And Our machine can special-made according to clients' requirements.


Product Parameter

Machine Model

MJT-1092

MJT-1575

MJT-1760

MJT-1880

MJT-2800

MJT-3500

Paper Width(mm)

1300

1800

2000

2200

2800

3500

Capacity (ton/day)

1

8 hours

1.5

8 hours

2

8 hours

2.5

8 hours

3

8 hours

3.5

8 hours

Finished Diameter

φ50~1800mm (Adjustable width and  tightness)

Finish Paper Core

φ30~55mm

Base Diameter

With 1100mm
Standard(Other size are available)

Jumbo Roll Core Diameter

76mm
National standard(Other size are available)

Process Capability

150~280 M / Min

Parameter Setting

PLC computer operating system  interface

Back Stand

Standard three layer synchronous transmission

Perforation Pitch(mm)

2baldes,150~300mm

Pneumatic System

The 3 horse air compressor,a  minimum pressure of 5kg/cm2Pa (not included in the quotation, usually customer buy it themselves)

Power

5.5kw~15kw (Stepless variable speed)

Dimensions

6200*2600*800mm~6200*4000*800mm

Weight

2500kg~8800kg

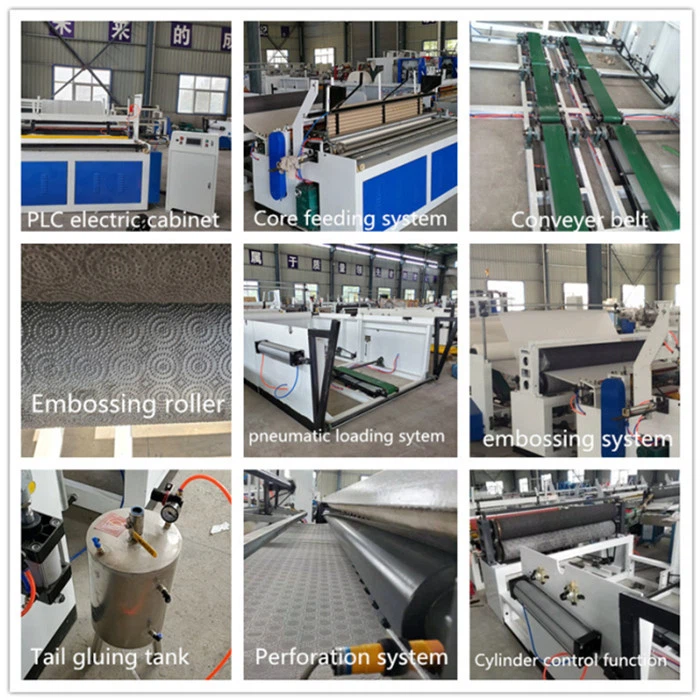

Functions and Features --- Toilet Roll Making Machine

1) This machine is used to make toilet paper rolls. The overall structure is wall-mounted, which makes the machine run at high speed and has no noise.

2) Automatic core delivery system, automatically push the log after rewinding, and then re-wind the new log.

3) Adopt international advanced PLC programmable control technology, man-machine interface operation on the touch screen, data set and parameter fault display.

4) 4 high-precision spiral knives with low noise, clear perforation and a wider range of gearboxes.

5) Double wall rear bracket, pneumatic lifting system, broadband drive flat belt; each large volume can be adjusted independently.

6) Simple and safe operation.


Recommendations

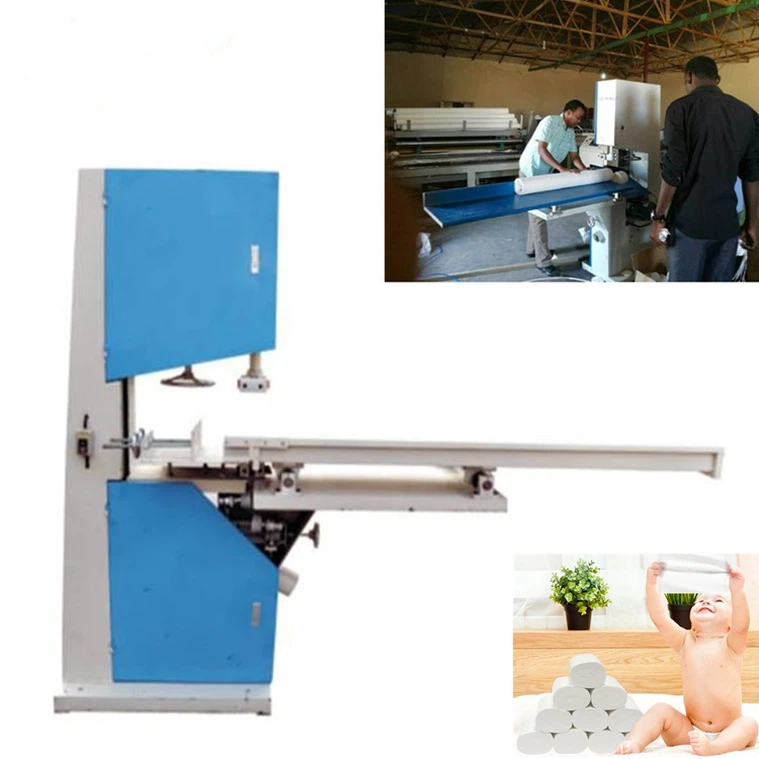

Toilet paper roll cutting machine                                     Toilet paper sealing machine

7.jpg   8.jpg

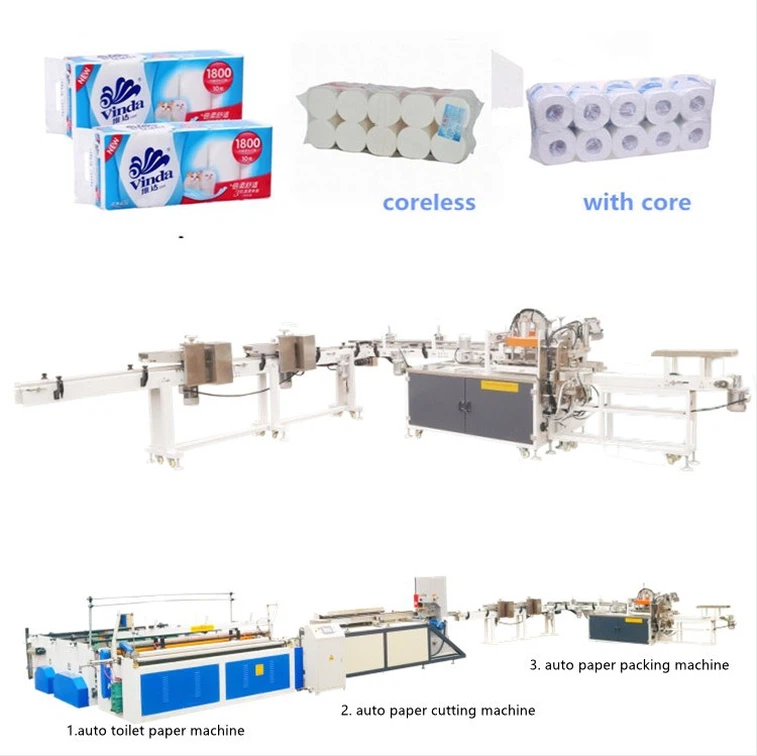

Full automatic toilet paper roll production line
