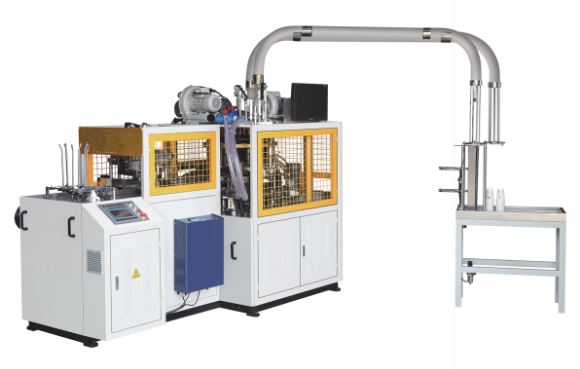

Paper cup making machine
Description of paper cup making machine:
Paper cup making machine be used to produce paper cup,you can use it to make different size cup for coffee shop,restaurant or domestic.For different size,you need to exchange different mould,one machine be quipped with one mould.
Technical parameter of paper cup making machine:
Model:MJ-C12H
Paper Cup Size RANGE: 2 ~~12OZ
Speed: 90~~100pc/min
Paper cup top diameter: Min 45mm ~~Max 104mm
Paper cup bottom diameter: Min 35mm~~Max 75mm
Paper cup height: Min 35mm~~Max 115mm
Raw material: 180~~350gsm, single or double PE coating paper
General power: 11 Kw
Electricity: 380V 3 phases
Air consumption: 0.2 cbm/min
Weight: 3000 kg
Feature of paper cup making machine:
1. Paper cup bottom sealing by Bank Brand,original switzerland hot air ceramic heating core.
2. It is easy to make cups of different size by changing moulds.
3. Cup side sealing by ultrasonic.
4. Double PE coating paper cups for cold drink as well as hot drink.
5. With our unique original designed bottom knurling system, single shaft, Korea type, this ensures the low leaking ratio and high quality of paper cups.
6. With unique single shaft design, the drive system is conducted by the stable gear system,it would be more stable when machine running at a high speed.
7. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
8. Every cam will be harden to ensure it can run for a long long time.
9. Machine is designed with double turning plate
10. Equipped with automatic cup collecting stacking and counting system.
11. Bottom paper we have a special pre-feeding system, so the bottom paper feeding is “0” waste.
12. Adopt the SIEMENS PLC micro computer system and also equipped with SIEMENS touch screen for easy and visible operation.
13. The upgraded gear box for longer life span.
14. Optional quality checking system
Package of paper cup making machine:
Related product of paper cup making machine:
Our service of paper cup making machine:
We will, without charge, offer replacement for defective parts which is caused by product quality in one year. Lifelong service is offered with cost charge after one year.And we can send technician for installation and training at the cost of buyer.
If u r interested, welcome to contact us!
