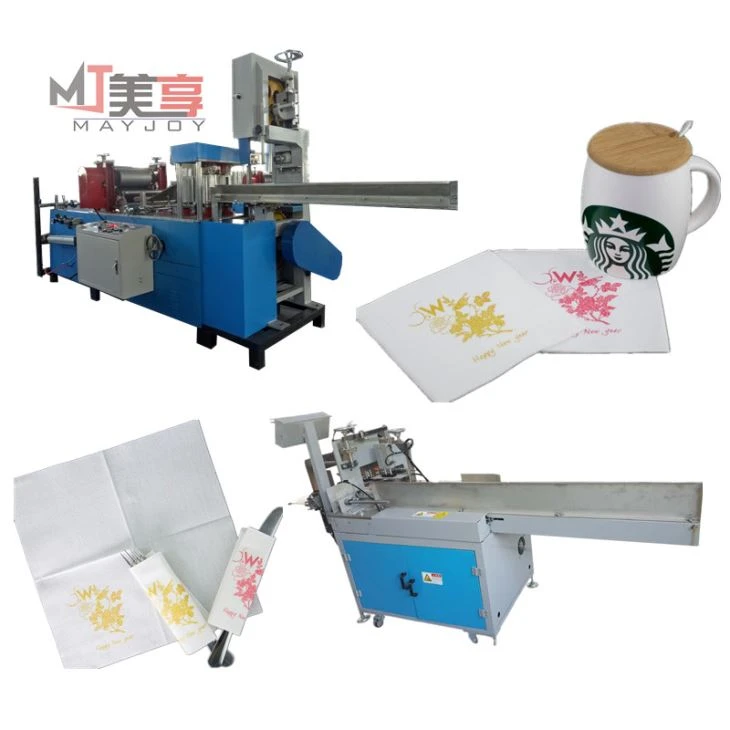

Serviette making machine plant
Technical specification of serviette making machine
Model:MJN-300
Unfolding Size:300*300mm
Folding Size:150*150mm
Raw paper diameter:≤φ1200
Raw paper inner core diameter:75mm Standard
Embossing Roller:Steel to Steel,Steel to wool
Counting System:Electronic Automatic Counting
Motor Power:4.2kw
Voltage:380v50hz
Dimension:3200*1000*1800mm
Weight:900kg
Speed:0-600pcs/min
Use of Power:Frequency Control ,electromagnetic governor
Transmission:6 Chains
Introduction:
The napkin folding embossing machine is used for processing the material bobbin by embossing,folding,electric counting,cutting into square napkin,automatic embossing folding no need manual folding ,the embossing type can made by customer's need to made different Clear and beautiful Pattern.
Features:
Automatic counting, entire column, convenient for packing
Folding place Positioning reliable,unified shaping size
We can make different specification model by customer's requirement
Steel to wool roller embossing ,the pattern is clear and various.
When the napkins are delivered to the front of paper push cylinder, put the packing bag to the output mouth; press the button, the paper will be pushed into the bag, meanwhile, the sealing is finished.
Technical specification of serviette packing machine
| Model | MJF-2030A |
| Air Pressure | 0.4-0.6Mpa |
| Voltage | 220V 50/60HZ |
| Packing speed | 15bags/min |
| Max packing size | 250*200*100mm (L*W*H) |
| Min packing size | 150*150*40mm(L*W*H) |
| Packing bag material | Composite film OPP/PE |
| Power | 0.4kw |
| Machine weight | 550kg |
| Machine dimension | 2500*800*1200mm(L*W*H) |
| Applications | Napkin, Square napkin |
Features:
The machine can work continuously.
The sealing can be finished one time. It improves the working efficiency and lower the cost.
The machine operation is very easy, has low requirement to the workers.
The whole machine use PLC computer control, accurate control on the position; easy to change the operation parameter and settings.
5. The main control part adopt imported good quality materials. Other part is in accordance with the national good quality standard part. The machine is stable and of good performance.
Please contact with me: +8619103850889
