Hand Tissue Paper Making Machine

Name: Hand Tissue Paper Making Machine
Brand: MAYJOY
SKU: 79855308

The hand tissue paper making machine is to inter fold the parent paper roll of the toilet paper (wet strong wood pulp paper) into an "N" type after embossing and cutting, and then people could pull it out one by one in usage. The hand tissue paper making machine adopts the original all-vacuum absorption folding technology in cutting, folding, counting and other processes. The machine is of advanced technology, stable operation and high efficiency.

Chat Now Send Inquiry

Description

Product Description of hand tissue paper making machine

Hand tissue paper making machine is mainly used for producing box (bag) hand tissue paper. It is widely used in daily life, especially in washing room for drying hand. There is two types of it N type/ V type. It is a disposable consumer product with huge market potential.

Features of Hand Tissue Paper Making Machine

1. Automatic counting system to make work easier in packing

2. Helical blade shear, vacuum adsorption folding

3. Stepless speed regulation unwinding to assure high-low tension paper rewinding

4. PLC computer programming control, pneumatic paper loading system

5. Frequency conversion control, saveing energy.

6. The product width is adjustable, to meet different market requirement.

7. Supporting paper embossing device, pattern obvious, flexible to market demand. (patterns, customized )

8. It can make N or V type single layer towel and two layers glue lamination .(Optional)

Technical Parameter of Hand Tissue Paper Making Machine

model	N-230 2Line hand tissue paper machine
Finished product size	open 230230mm(±1-4mm), fold 23076~77mm(±1-4mm)
Maximum cutting base paper size	2line:460 mm
Production speed	60~80m/min
embossing	steel to steel
jumbo roll stands	Pneumatic lifting the jumbo roll
Control system	PLC control
Equipment main power	3.0kw
Dimensions	400017002000mm
Weight	About2000 kg

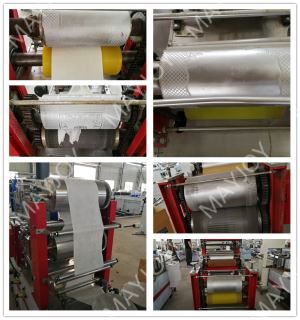

Detail Images of Hand Tissue Paper Making Machine

Hand Tissue Paper Making Machine 3

Our Certificate

Company Information

Mayjoy machinery is professionally engaged in producing good quality toilet tissue machine for over 30 years.The machine we produce have good quailty ,cost-effective,competitive price and other advantages.And these machine also have exported to all over the world,which responded well in those countries.

So if you are interested in our products.please contact me,and I believe you will get a sactisfactory product.
