Toilet Paper Core Making Machine

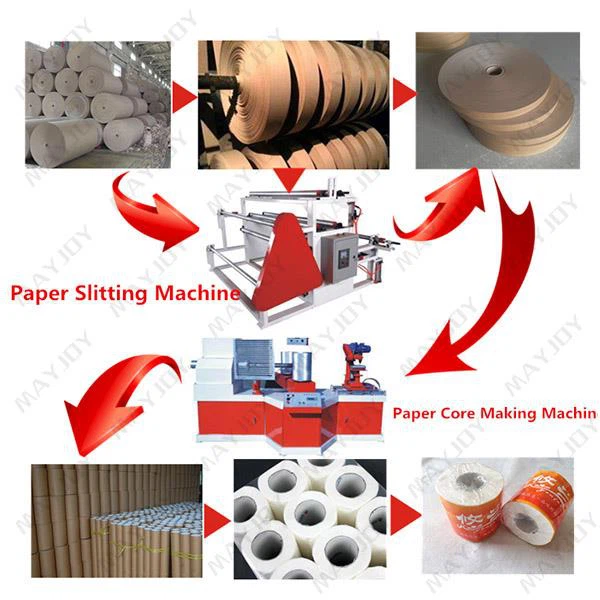

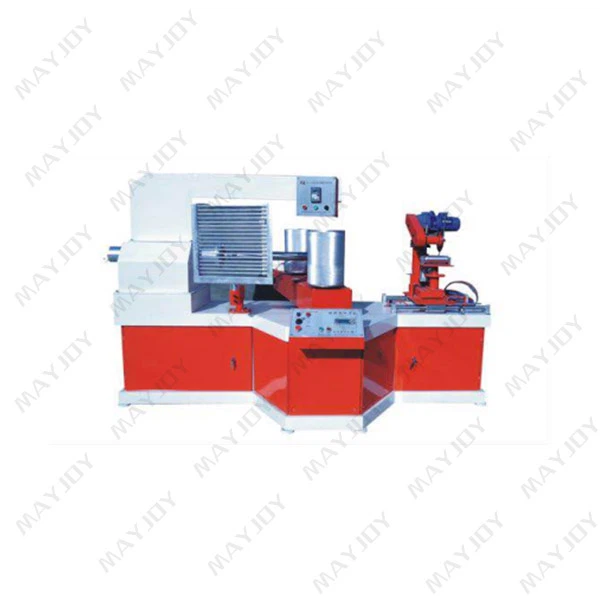

This Toilet Paper Core Making Machine can make the paper core from fluting paper roll .the paper roll have been cut into with small width.It can coat glue on paper and rotate into paper core.
Technical Parameters
Roll paper layers | 3-16 layers | |
Max. diameter | 150mm | |
Min. diameter | 20mm | |
Max. thickness | 8mm | |
Min. thickness | 0.5mm | |
Fixed mode of coil core mould | Flanged flange | |
Rolling head | Two heads single belt | |
Cutting method | Single round knife cutting without resistance | |
Gluing method | Single side/double sides gluing | |
Fixed-length mode | photoelectricity | |
Operator | 1-2 persons | |
Paper core rolling speed | 3-20m/min | |
Speed control | Frequency converter | |
Power supply | 380V three phase(can be customized) | |
Product Features:
1.Computer PLC and frequency control system,low noise;
2.Saving power,it can save 50% electricity than ordinary electromagnetic speed adjustment;
3.Locating by infrared ray,automatic cutting;
4.Single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily;
5.Automatic Gluing,easy operation
6.The digital control panel set various operating function,can set arbitrary workings on the machine;
Other Details of the Toilet Paper Core Making Machine
Control System
PLC control | Taiwan | ||
Human-computer interface | Color Touch Screen | ||
Program version | HT/4.0 | ||
Frequency converter | Shenzhen Easydrive Frequency | ||
Execute device（contactor） | China Zhengtai Product | ||
signal element(photoelectric switches) | Omron products | ||
Pneumatic element | Hengyi Products | ||
Adjustable Angle of the motor | Jiacheng | ||
Synchronous control | X axis servo screw and Z axis stepping screw | ||
Simultaneous tracking of the cutting pipe system | Servo synchronous tracking cutting |
Specification Size
Machine size：L*W*H | 3200*2000*1950mm | |
Floor Space：L*W | 16*7.5m | |
Hub diameter | 269mm | |
Hub height | 400mm | |
Min.wheel distance | 750mm | |
Max.wheel distance | 950mm | |
Weight | 2800kg | |
Eqquipped Device
Remote control | selectional | ||
Auto core dropping shelf | Yes | ||
Belt diagonal | Electric | ||
Belt tightening adjustment | Mechanical adjustment | ||
The host angular | Selectional | ||
Lacking-paper automatic stop | Automatic stop of the bottom paper | ||
Automatic feed glue | Pneumatic diaphragm pump | ||
Paper tape is automatically used for lubricating oil | Automatic | ||
Tension adjustment | Mechanical adjustment | ||
Paper frame type | the whole paper frame | ||
Rolling belt | Canvas belt/strip baseband |
Drive System
Host Power | 5.5kw | ||
Wheel speed | 47r/min | ||
Wheel hub output torque | 1360N.m | ||
Drive method | Gear drive and chain drive | ||
Drive chain model | 12A x 2 | ||
Wheel hub drive | Two wheel drive | ||
Cutting blade motor | Stepping motor/gear motor | ||
Bearings | Harbin bearings |
Attached Parts
Volume tube plug | 1pcs | |
Tube belt | 1set | |
Application tool | yes | |
Surface paper installation | yes | |
