Paper Tube Core Machine

The paper tube core machine is a machine used to make toilet paper core. It cuts the fluting paper roll into smaller width, and then rotates it to form common paper core by gluing on the paper.

Chat Now Send Inquiry

Description

Technical Specification

Speed control	Frequency converter
Power supply	380V three phase(can be customized)
Roll paper layers	3-16layers
Max. diameter	150mm
Drive method	Gear drive and chain drive
Drive chain model	12A x 2
Wheel hub drive	Two wheel drive
Min.thickness	0.5mm
Gluing method	Single side/double sides gluing
Fixed-length mode	photoelectricity
Operator	1-2persons
Paper core rolling speed	3-20m/min
Automatic feed glue	Pneumatic diaphragm pump
Paper tape is automatically used for lubricating oil	Automatic
Host Power	5.5kw
Wheel speed	47r/min
Wheel hub output torque	1360N.m
Machine size：LWH	320020001950mm
Weight	2800kg

Advantages of the Paper Tube Core Machine

1.The equipped systems make the machine more secure.

2.It has lower noise than other similar machines;

3.Automatic Gluing,so it easy to operation

4.The machine could automatic cutting because it is locating by infrared ray;

5.Computer PLC and frequency control system

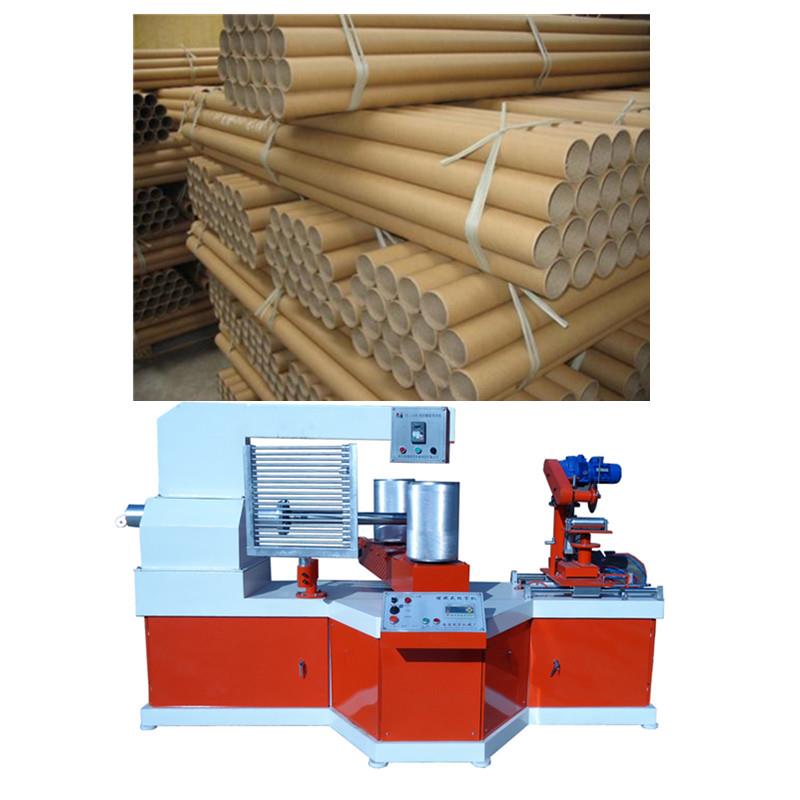

Pictures and Video of the Paper Tube Core Machine

https://www.youtube.com/watch?v=q1VrYMKJi-k

Paper Core Making Machine

Our Services

1,.The easy damaged goods will be along with the machine.

2. We offer the DVD for machine operation and install, the DVD and all manual shipped together with the machines.

3.The machine will guaranteed for one year. We will replace the damaged spare parts (except easy damageable parts) within one year. After one year, we will trace the technology and quality for long time.

Our Company Photos

Why Choose Us

Our factory are specialized in develop and manufacturing paper tube core machine for more than 30 years,we have abundant experience at producing paper tube core machiner, so our machine funation and quality are good.
