Detail Description of the Prodution Line

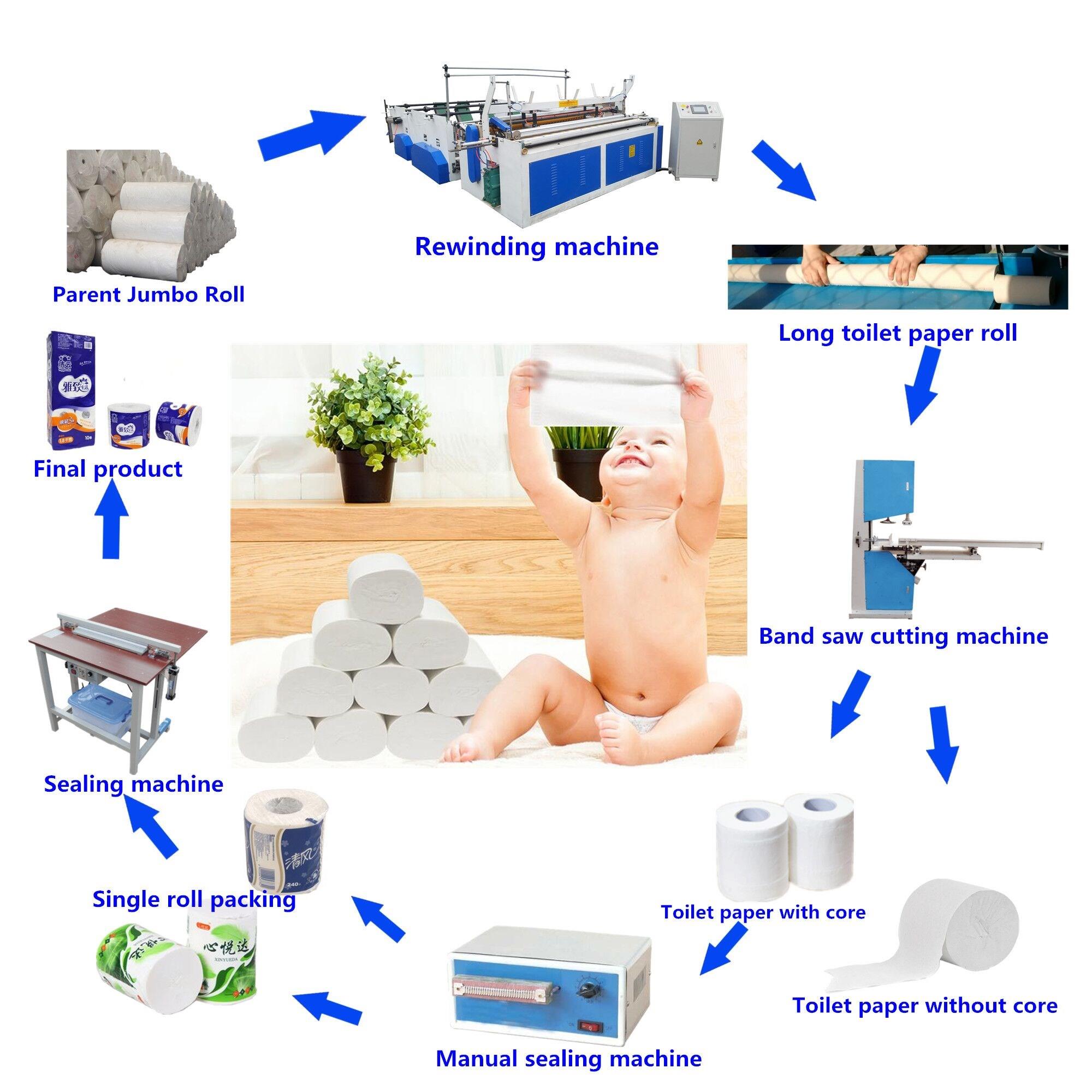

The production line consists of three machines:Rewinding machine,slitting machine,sealing machine.
The technical parameters are as follows:
1.Tissue paper roll rewinding machine
Machine Model | MJT-1575 | MJT-1760 | MJT-1880 | MJT-2800 | MJT-3500 |
Paper Width（mm） | 1800 | 2000 | 2200 | 2800 | 3500 |
Capacity (ton/day, 8 hours) | 1.5 | 2 | 2.5 | 3 | 3.5 |
Jumbo Roll Core Diameter | 76mm National standard（Other size are available） | ||||
Validity | 15 days | ||||
Certificate | CE | ||||
Counting System | Electronic Counting | ||||
Payment Term | TT in Advance | ||||
Process Capability | 150~280 M / Min | ||||
Parameter Setting | PLC computer operating system interface | ||||
Lead Time | 10 working days after advance deposit received | ||||
Automatic Grade | Full Automatic | ||||
Back Stand | Standard three layer synchronous transmission | ||||
Function | Cutting Rewinding Sealing | ||||
Power | 5.5kw~15kw Stepless variable speed | ||||
Guarantee | 1 Year | ||||
Dimensions | 6200*2600*800mm~6200*4000*800mm | ||||
Weight | 2500kg~8800kg | ||||
2.Tissue paper roll sltting machine and sealing machine
Model | MJ-500 |
Power supply voltage | 220V |
Power | 30-100w (water pump); 50w(heating wire) |
Heating wire size | 5*0.3mm (sealing heat wire) 0.5mm(cutting wire dia) |
Counting System | Electronic Counting |
Sealing width | 380-800mm |
Dimension | 850*700*800mm |
weight | 45kg |
Model： | MJS-1 |
Paper roll size： | ≤ 1300(dia)*3500mm |
Final dimension: | 80-280mm(dia), length adjustable |
Capacity： | 3000kg/day |
Power supply： | 1.5kw |
Machine size： | 2000*700*1800mm |
Weight： | 500kg |
Packing and Shippment
The tissue paper rewinding machine is usually packed in wooden boards or containers, which can effectively protect the product from damage. Of course, we can also use other more suitable packaging methods according to the needs of customers.
As for transportation, we usually ship goods from Qingdao Port by sea. Generally, we will improve the efficiency of delivery as much as possible. Usually, we will deliver goods within 15 working days after receiving customer deposit.
Company Information
Mayjoy company has been dedicated to the production of various types of paper machinery for many years, which has a complete paper production line, such as napkin production machine, toilet paper production machine and so on. And the machines produced are popular in domestic and foreign markets because of their strong competitiveness,high quality and good-after sale service.
What Advantage our company have
Best service attitude
Good Quality
Competitive price
Strong Patience
Ability to Solve Question
Fast delivery
Excellent export experience
