Products Description
1. This Wet Tissue Packing Machine can automatically complete the non -woven fabric folding/humidification/cutting/stacking and make packaging bag with labels and perforation and production date printing.
2. The whole machine uses 304 stainless steel, which isresistant to corrosion and rust. Compact structure, stable performance, and simple operation.
3. The first third -generation invention for dual -frequency frequency control in China. One step packing, saving time and film.
4. Adopt a servo control system,more accurate positioning, low energy consumption, higher degree of automation, saving labor. Touch screen, simple operation, self-diagnosis function, fault display is clear at a glance.
Products parameter
| Machine name | Fully automatic single piece wet wipes machine |
| Machine model | MJ-260 |
| Packaging materials | Suitable for all kinds of film, heat sealing film.composite film,aluminum-plastic composite film |
| Model specifications | 4500*1500*1700mm |
| Packaging speed | 200-300 bags/minute |
| Max packaging size | 200mm L, 100mm w, 40mm H |
| Min packaging size | 100mm L, 30mm w, 1mm H |
| Non-woven fabric wide | 80-300mm |
| Rated voltage, power | AC220V 6KW |
| Compressed air pressure | 0.5-0.7 Mpa |
| Compressed air consumption | >0.36(m3/h) |
| Machine weight(kg) | 900kg |
| Motor frequency modulation ability | 0-50Hz |
| Machine size | L 3972mm, W 1570mm, H 1552mm |

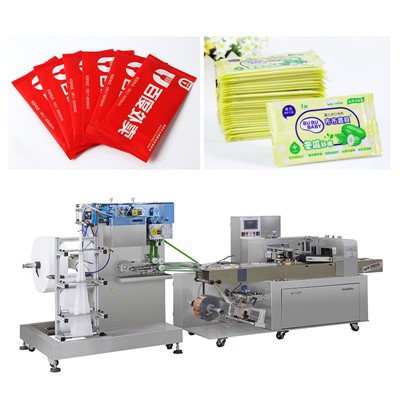

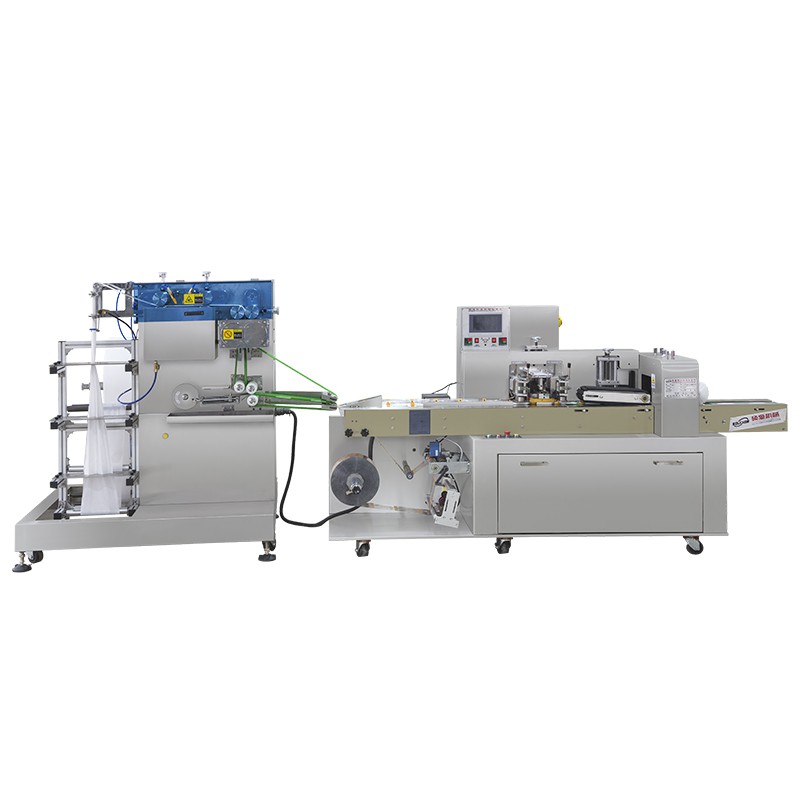

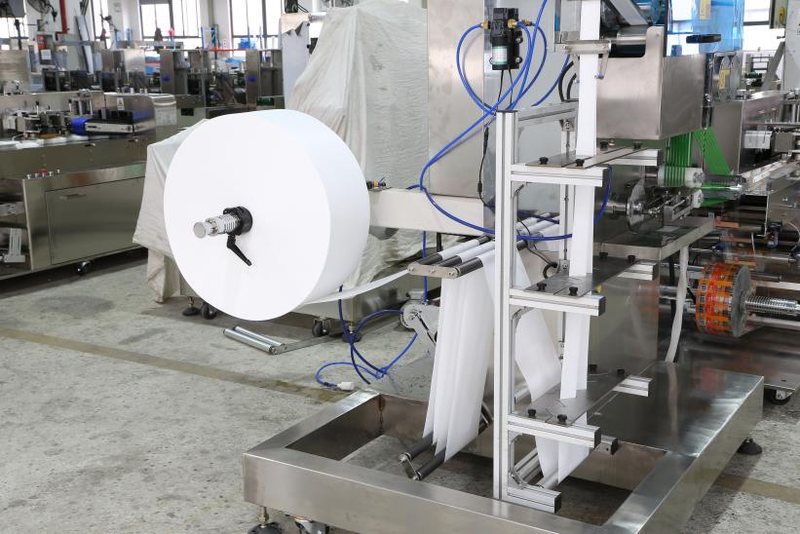

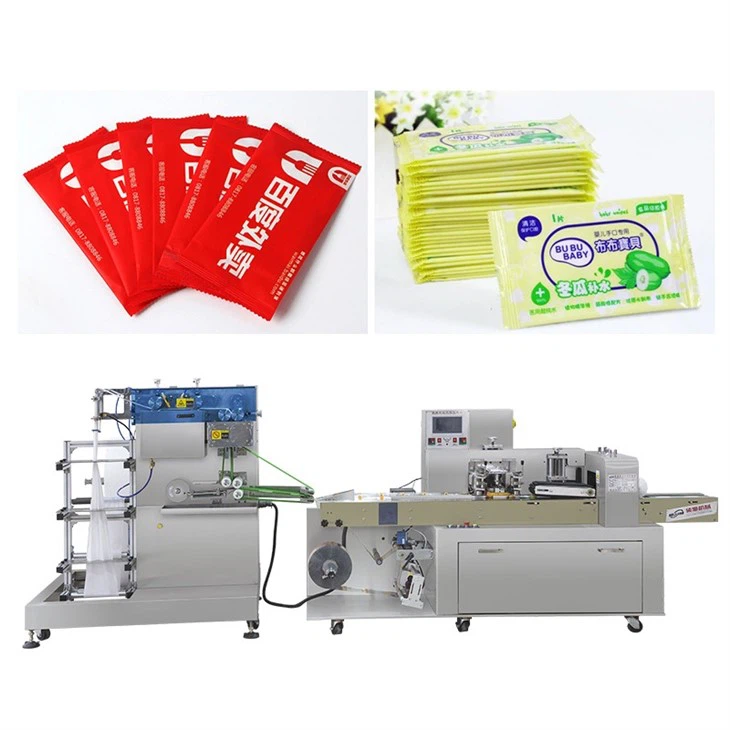

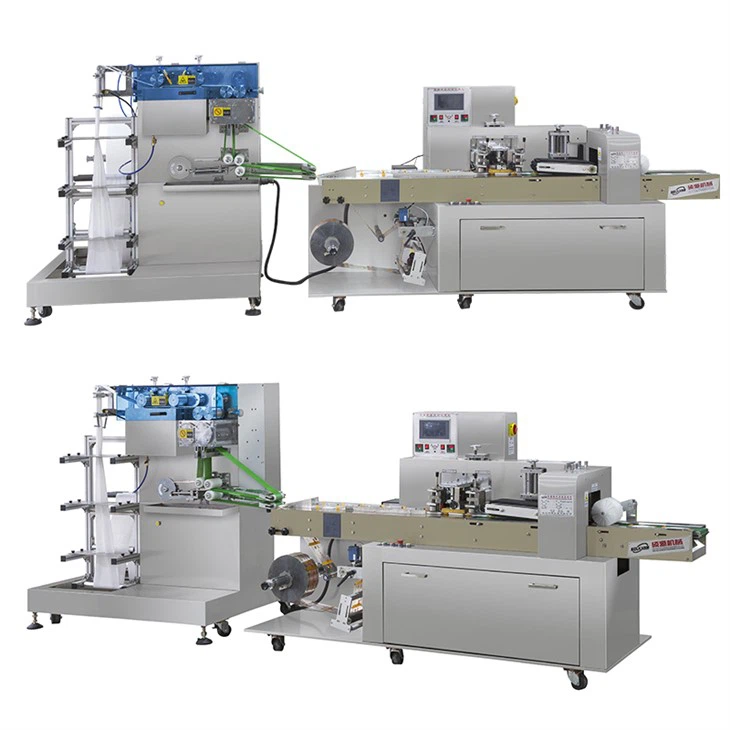

Products picture
Products features
1. Highly Automated Production: The fully automatic wet wipes machine performs the entire process-including non-woven fabric unwinding, folding, liquid application, cutting, bag forming, and sealing-without any manual contact, thereby ensuring optimal hygiene.
2. Intelligent Control: Equipped with a PLC servo control system and a Human-Machine Interface (touchscreen), the machine offers convenient and rapid operation, featuring self-diagnostic capabilities for faults and easy configuration of production parameters (such as bag length and temperature).
3. High-Precision Sealing and Cutting: Features a photoelectric eye detection and tracking system that ensures precise positioning for sealing and cutting, minimizing errors to a negligible level.
4. High Efficiency and Stability: Compared to manual packaging, the machine operates several times faster (reaching speeds of hundreds of wipes per minute); furthermore, its robust structure ensures stable and reliable operation.
5. Strong Adaptability: Utilizes an independent temperature control system, allowing it to accommodate various types of packaging films made from different materials.
6. Practical Functionality: Includes a suite of practical features such as automatic shutdown upon material depletion, automatic rejection of empty or defective bags, automatic counting, and automatic deviation correction.
Products application
Suitable for single-sheet, multi-sheet, four-side-seal, or three-side-seal products such as disinfectant wet wipes, restaurant/hotel cleaning wipes, medical wipes, baby wipes, and more.

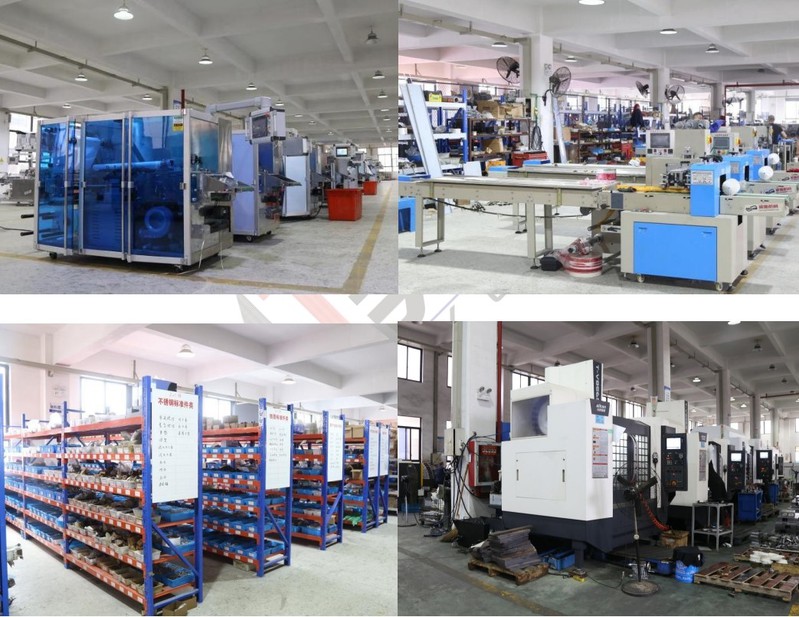

workshop
