Craft Paper Slitting Machine

The main function of the craft paper slitting machine is to produce jumbo rolll craft papert to make paper tubes of all sizes. It slits and rewinds the big parent paper roll into to smaller width jumbo roll. In this way, the product can be made into the paper core for toilet paper through a paper tube making machine.

Chat Now Send Inquiry

Description

Specification Parameters of Craft Paper Slitting Machine

Model	MJ-1600A
cutting speed	200m
cutting ability	600g*35g
the maximum diameter of the base paper	1200mm
paper way	automatic
number of operations	1 people
paper correction	before and after
Guarantee Time	One year
Speed Control Frequency	Conversion Speed Regulation
main engine power	3kw
max width	1700mm
speed control	electromagnetic speed regulation
maximum width diameter	700mm
cutting knife quantity	21 pay

Introduction of Craft Paper Slitting Machine

The Craft Paper Slitting Machine is used to make big paper roll into smaller size paper roll. So it can be used on the paper core making machine, to make core of different sizes and different layers with glue. The paper core is widely used in a lot fields, such as toilet paper roll core, etc.

Features of Craft Paper Slitting Machine

1.The upper and lower knives can be adjusted to change the paper width between 2-1700mm.

2.Automatic system, easy to operate.

3.Lower noise and smooth operation.

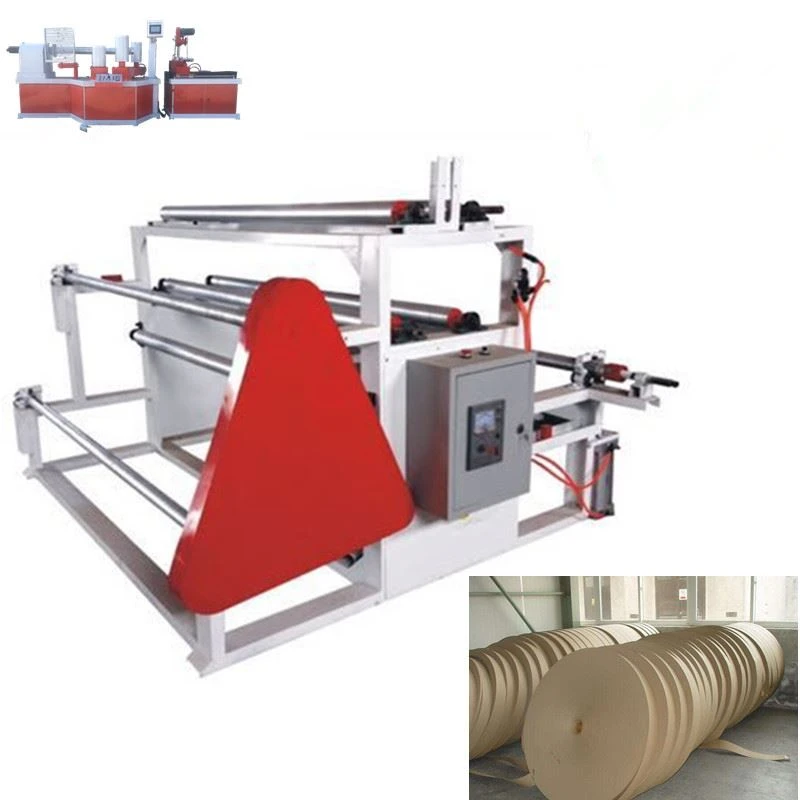

Photos about Craft Paper Slitting Machine

Craft Paper Slitting Machine

Package

We usually use high-quality plywood to pack products, and pay attention to protection, to avoid machine damage in transit. In addition, we also use large containers to export goods, which is a more secure packaging method
