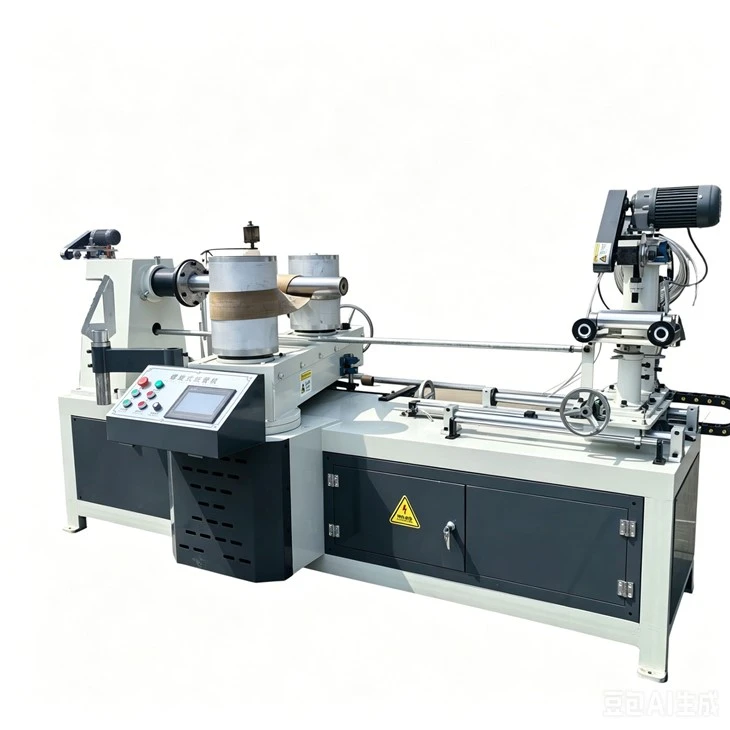

A cardboard tube machine is the backbone of efficient core and tube manufacturing. These highly automated industrial systems transform raw kraft paper reels into sturdy, cylindrical cardboard tubes. These tubes are essential across various industries, including textiles, shipping, tape manufacturing, and eco-friendly consumer packaging.
specifications
| Product name | Cardboard tube machine |
|
Number of paper winding layers |
3-15 ply |
|
Coiling tube diameter |
20mm--120mm |
|
Coiling tube thickness |
1mm--6mm |
|
Winding head |
Double heads single belt |
|
Cutting method |
Single circular blade cutting |
|
Synchronization control method |
Pneumatic |
|
Glue adding method |
Single-sided /Double-sided gluing |
|
Power |
5.5KW |
|
Human-compute interface |
Color touch screen |
|
Input Power |
380V three-phase four-wire (Other voltage require customization) |
|
Number of operators |
1-2 workers |
|
Coiling tube speed |
3-15m/min |
|
Size |
2600mm×1900mm×1920mm |
|
Total weight |
1600kg |
How a Cardboard Tube Machine Works
[ Kraft Paper Reels ] ──> [ Gluing System ] ──> [ Winding Mandrel ] ──> [ Automatic Cutter ] ──> [ Finished Tubes ]
The manufacturing process is seamless, highly precise, and consists of four main stages:
• Plying and Slitting: Multiple layers of paper strips are fed into the machine simultaneously.
• Cascading Gluing: High-bonding adhesives are evenly applied to the paper plies to ensure structural integrity.
• Spiral Winding: The paper strips are tightly wound around a fixed mandrel at a precise angle, forming a continuous tube.
• In-Line Cutting: A synchronized tracking cutter cuts the moving tube to your exact programmed length without stopping production.
Crucial Advantages for Your Business
Investing in a modern cardboard tube machine delivers massive operational benefits:
• High-Speed Efficiency: The models achieve stable production speeds of up to 3 to 15 meters per minute, dramatically boosting your daily output.
• Servo-Driven Precision: Numerical control (CNC) systems and servo motors guarantee cutting tolerances within ±0.5mm, minimizing material waste.
• Extreme Flexibility: Quick-change mandrels allow operators to adjust inner diameters from 20mm to over 120mm with minimal downtime.
• Sustainable Growth: Utilizing recyclable paper stock aligns your production with global green packaging trends and strict environmental regulations.
