Facial Tissue Packaging Machine

HX-T80SD Automatic Facial Tissue Packing Machine Main features High speed fully automatic facial tissue packing machine is suitable for the automatic packaging of V-fold, M-fold facial tissue, napkins, and flat paper. The machine adopts servo drive control, and has the advantages of complete...

Chat Now Send Inquiry

Description

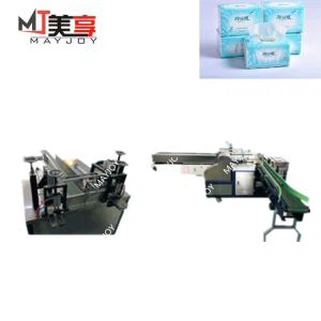

HX-T80SD Automatic Facial Tissue Packing Machine

Main features

High speed fully automatic facial tissue packing machine is suitable for the automatic packaging of V-fold, M-fold facial tissue, napkins, and flat paper. The machine adopts servo drive control, and has the advantages of complete operation function configuration, high use efficiency, simple operation, wide range of specifications, convenient maintenance, and low use cost. Its standard specification has a maximum stable production speed of 80 packs/minute.

Main technical parameters

Technical Specifications	Description	Remark
Scope of application	Facial tissue, hand towel,napkin tissue
Infeed	ASF Full automatic	Five sections of intelligent flexible feeding mode
Max.design mechanical speed	≤ 80 bags/min	Related to specification of packing
Max. stable operation speed	65 bags/min	Related to specification of packing
Tissue length range (finished product)	120 mm- 210 mm	Over this size can be customized
Tissue height range(finished product)	40 mm- 100 mm
Tissue width range(finished product)	90 mm- 105 mm
Spare parts for change size	3 set	Standard configuration quantity, the accurate specifications drawn up by the user
Machine size	Length 4600 mm Width 3620 mm Height 1770 mm	Standard size
Machine weight	About 3000 KG
Packing raw material	CPP film
Film Thickness	0．04mm-0．055mm
Max film diameter	400 mm	Over this size can be customized
Film core diameter	76mm	In accordance with international standards
Max film width	340mm	Over this size can be customized
Air pressure	Minimum air pressure 5MPA	Equipped by user
Power supply	380V/50HZ	Following China's electric power standard
Total drive power	4.8 KW	The sum of main motor, servo motor, Sum of speed regulating motor power
Total heating power	4.6 KW	Side seal, side sealing part of heating power combined
Voltage variation	+/-10%	In accordance with international standards
I/O Input/ I/O	24VDC	Electrical control system control circuit input
I/O Output/ I/O	24VDC	Electrical control system control circuit output
Machine run control pattern	Three axle servo and axle location control	The electronic CAM motion curve
Equipment main transmission mode	20crmnti mechanical-cam+The electronic CAM drive
Machine standard colour	Gray, International color RAL 7032	The international color card color number RAL7032
Packing format	Three-dimensional wrap	vertical sealing first and then two side sealing
