Automatic Rewinder For Toilet Paper

Functions:1.Auto rewinding,perforation and cutting 2.Automatic glue spraying 3.Auto pneumatic paper loading 4.With synchronous belt 5.Automatic paper pushing function 6.PLC, 3 jumbo roll stands 7.Automatic paper core feeding system 8. Automatic connection system to cutting machine

Description

MJT-1880 Automatic Toilet Paper Rewinding Machine

product-1920-600

Products Specification

Specification of Automatic Rewinder For Toilet Paper:

Original paper width ≤φ2200mm
Finished paper dia 50~180mm
Paper core dia 30-55mm
Perforation distance customized
Process capacity 3T/D(8hours)
Total power 5.5kw+0.75kw
Machine size 6200*3200*1900mm
Weight 2500kg



Products Functions

Functions of Automatic Rewinder For Toilet Paper:

1.Auto rewinding,perforation and cutting

2.Automatic glue spraying

3.Auto pneumatic paper loading

4.With synchronous belt

5.Automatic paper pushing function

6.PLC, 3 jumbo roll stands

7.Automatic paper core feeding system

8. Automatic connection system to cutting machine



Products features

Features of Automatic Rewinder For Toilet Paper:

1. This model is designed with PLC control system, fully automatic in production process, the function is complete and the production speed is high. The finished rewinding process implements tight first and loose later and different stage loose degree, resolve paper and core apart in the long storage time.

2. It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3. When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes. Automatic alarm for breaking off of paper.



Products Advantages

Advantages of Automatic Rewinder For Toilet Paper:

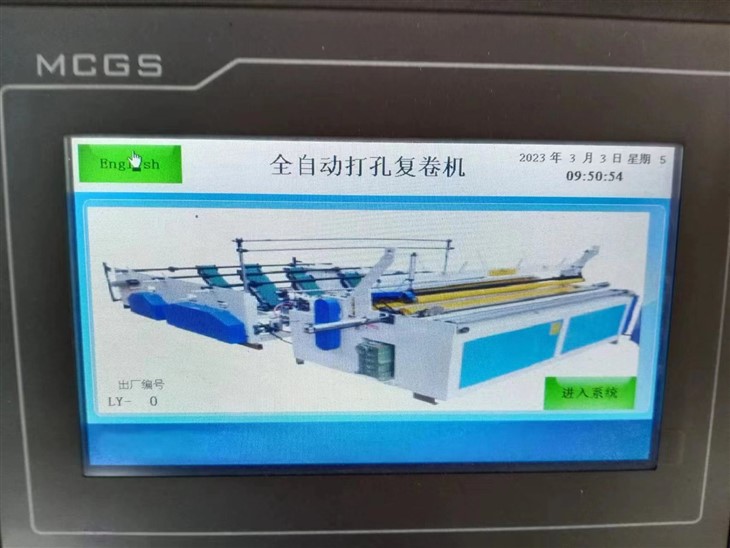

Touch PLC screen

product-195-130

  1. Pneumatic loading system

for bigger cylinder, we can change it for free. It is very cheap one. But the cylinder we equip on the machines is totally enough for the usage.

product-231-137

  1. The synchronous conveyor belt
  2. has three layers of thickness, which is more durable and tighter. The surface layer is anti-slip design to prevent slipping during high-speed operation.

product-207-136



Products picture

toilet paper machine 7

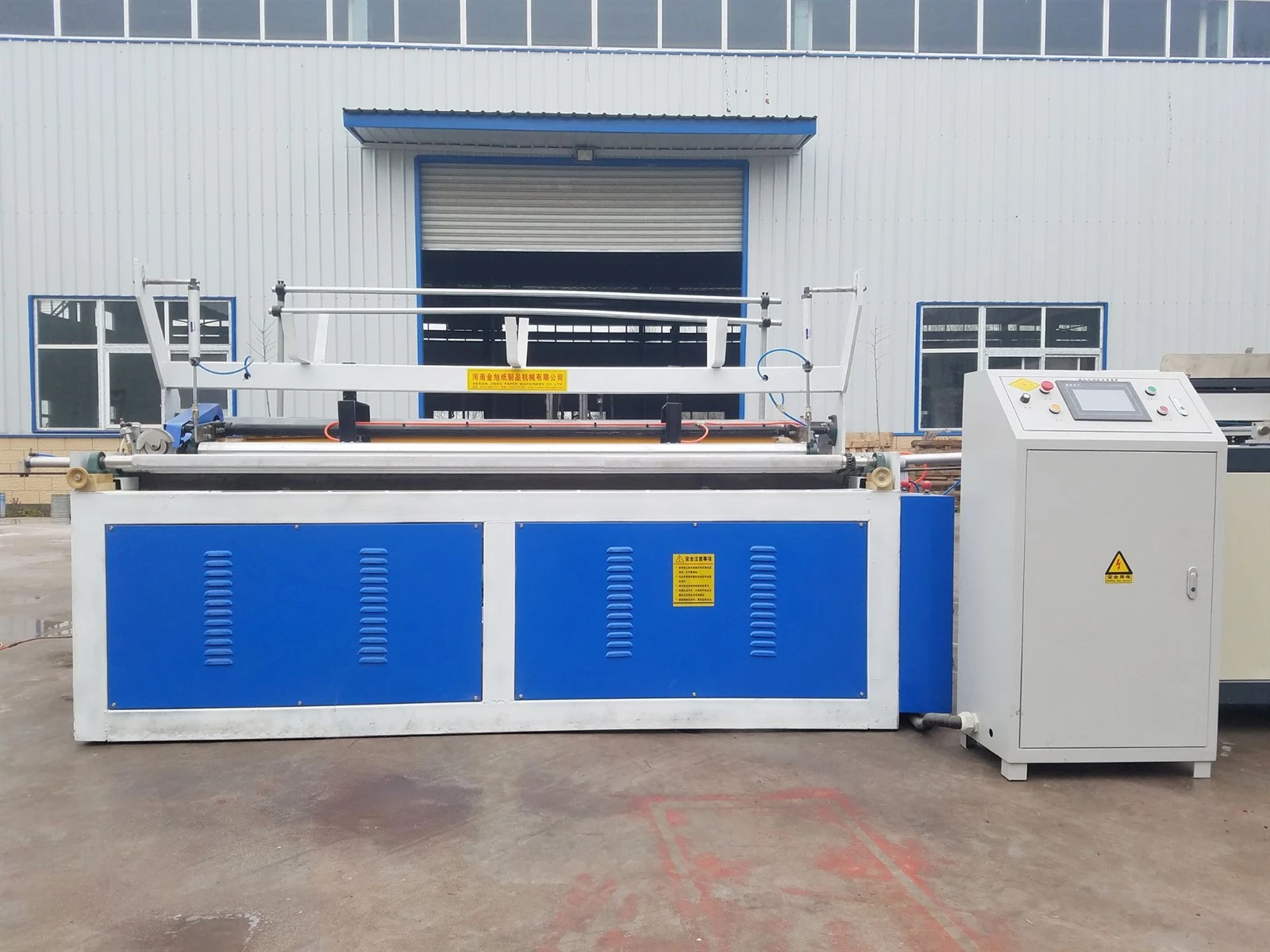

toilet paper machine 10

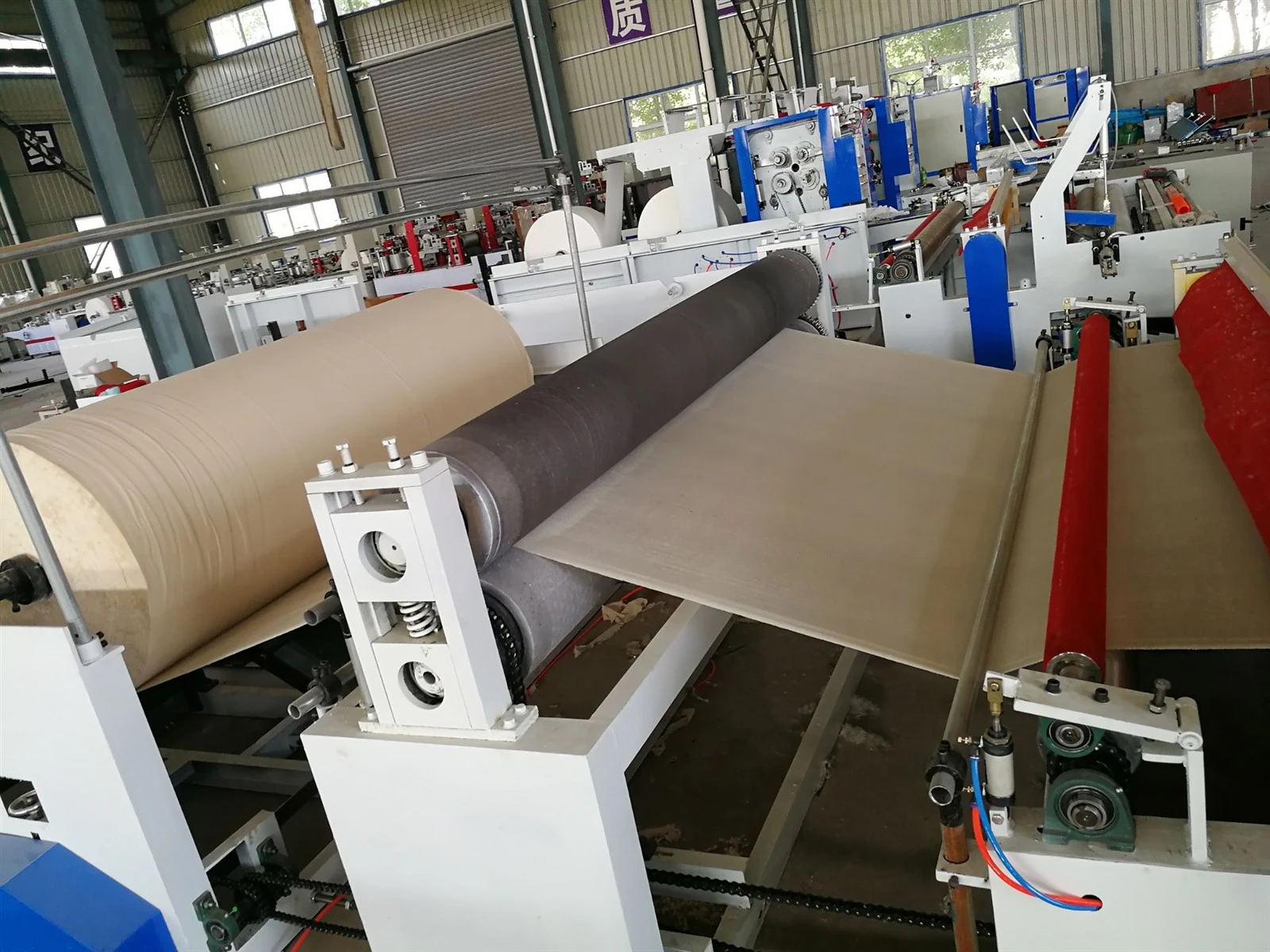

toilet paper machine 9

toilet paper machine 13
