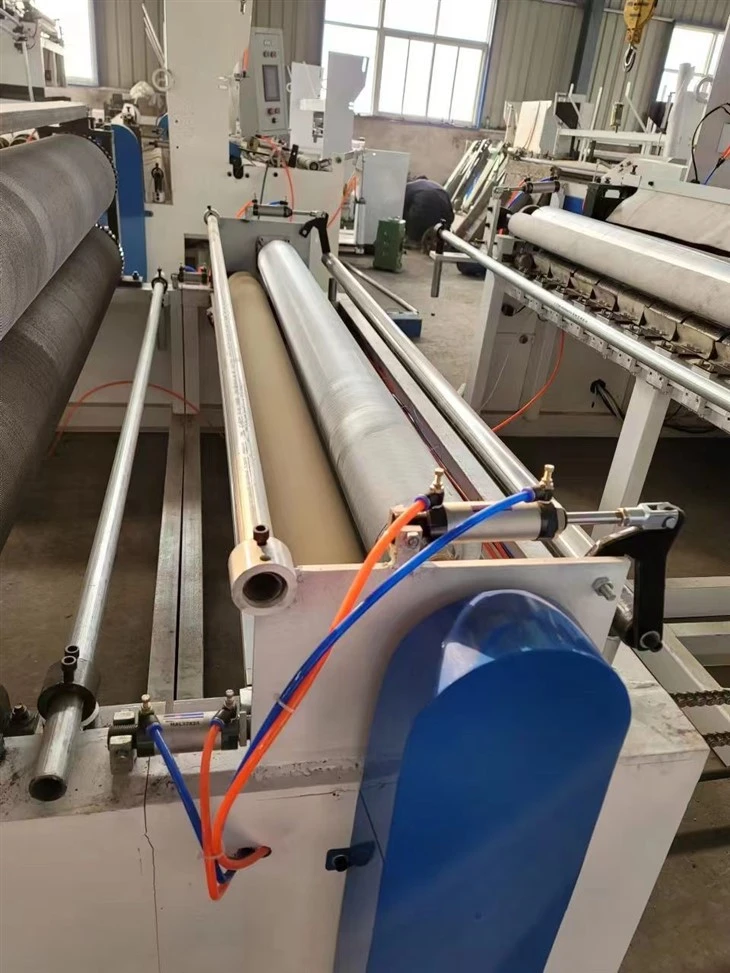

Toilet Tissue Paper Winding Machine

Functions: 1.Auto rewinding,perforation and cutting 2.Automatic glue spraying 3.Auto pneumatic paper loading 4.With synchronous belt 5.Automatic paper pushing function 6.PLC, 3 jumbo roll stands 7. Automatic paper core feeding system 8. Automatic connection system to cutting machine Optional function for rewinding machine at 1. embossing function to make embossing picture on the paper roll 2. Normal perforation distance fixed around 120mm±10mm. Customer could add CVT(Continuously Variable Transmission) to adjust perforation distance within range 200mm, like 100-300mm

MJ 1880 Toilet paper rewinding machine

Functions:

1.Auto rewinding,perforation and cutting 2.Automatic glue spraying 3.Auto pneumatic paper loading

4.With synchronous belt 5.Automatic paper pushing function 6.PLC, 3 jumbo roll stands

7. Automatic paper core feeding system 8. Automatic connection system to cutting machine

Optional function for rewinding machine

1. embossing function to make embossing picture on the paper roll

2. Normal perforation distance fixed around 120mm±10mm. Customer could add CVT(Continuously Variable Transmission) to adjust perforation distance within range 200mm, like 100-300mm

Specification:

Original paper width: ≤φ2200mm

Finished paper dia :50~180mm

Paper core dia: 30-55mm

Perforation distance: customized

Process capacity: 3T/D(8hours)

Total power: 5.5kw+0.75kw

Machine size: 6200*3200*1900mm

Weight: 2500kg

1 51

There are 4 machines in the product line

2. Automatic Toilet Paper Cutting machine
Model		Picture				Specification
MJS-10					Cutting speed: 80-200times/min Cutting paper roll size: length 100-200mm, width: 70-150mm, height: 50-150mm(by customer) Air pressure: 0.6MPA(prepared by customer) Total power: 7.5kw Weight: 1000kg

The machine is used for cutting long rolls in to small rolls, ready for next packing step. Features: 1. LCD touchable screen is used to realize humanized operation, easy to operation and adjust. 2. No workers is needed in the cutting process, very safe. 3. The machine is suitable for box drawing paper, facial paper cutting, cutting length for facial paper can be customized. 4. It is easy to set cutting number and cutting length and can be connected with automatic packing machine. 5. The machine settings are advanced and stable. Control parts are mainly used good quality import parts.
3. Automatic Toilet Paper Multi-roll Packing Machine
Model			Picture	Specification
MJ-10				Specification Type: Double Row Round Packing speed : 8-15 package / minute Total power: 3.5KW Gas source pressure: 0.6MPa Overall dimensions (length* width * height):620029001400mm Power Type: 220V 50HZ Packing size: length 400~600mm Width 160~240mm High 160~240mm Weight: 700kg
All the machines above are automatically connected together, saving labor. Usually, only one worker is needed.
The machine is used for packing 6, 10, 12 paper rolls and can be connected to automatic cutting machine to realize automatic sealing, 1. PLC programming control and LCD. The machine settings can be preset. 2. The machine only need one worker to operate. 3.Stable performance and long life span. 4. With sensor to guarantee safety. 5. One machine can be use for pack all size of products.
4.Air compressor
Model	Picture				Specification		FOB Qingdao
MJ-A6				Air pressure:0.6m3 Power: 4kw Speed:2890R/min Voltage:380v50hz Note: One air compressor is enough for all the machines needed to air compressor)			USD350
Final products: Our factory: Customers: Delivery: Customer’s workshop:
