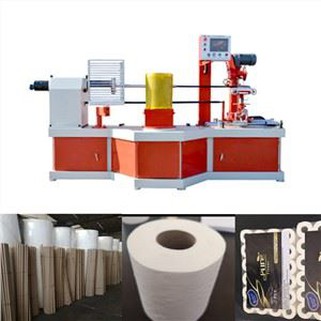

Mayjoy automatic paper core making machine
Function description:
The design concept is simple, compact and stable.
Production use reference: various medium and large industrial paper core tubes.
Features:
1. The main body is made of thick and heavy-duty steel plates which are welded after CNC cutting. The frame is stable and not easily deformed, and the vibration is small.
2. The main transmission adopts hard tooth surface full oil bath chain transmission, low noise, low heat generation, high speed and high torque.
3. The main motor adopts a vector-type high-torque frequency converter for speed regulation.
4 Optional CNC synchronous chasing shearing system, the cutting table is driven by precision ball screw and high-performance servo motor.
5. Equipped with pulse fixed-length control, combined with feed-forward compensation function, the cutting length is guaranteed to be consistent at different host speeds, cutting length control is more accurate than before.
7. Equipped with a new type of operation panel and large-size color touch screen man-machine interface operation.
8. It can be equipped with a multi-functional backing paper supply device, and the automatic stop function when the paper breaks.
9. The integrated linkage device of integral paper supply frame, glue supply and coating frame, and paper guide device is optional, and it is fully electric adjustment.
10. Modular electrical layout design, more convenient and scientific to use, maintain and repair.
Technical Specification:
|
Technical Specification |
Control System |
|||||
|
Roll paper layers |
3-30layers |
PLC control |
Taiwan TAIDA |
|||
|
Max. diameter |
350mm |
Human-computer interface |
Color Touch Screen |
|||
|
Min. diameter |
100mm |
Program version |
HT/4.0 |
|||
|
Max. thickness |
25mm |
Frequency converter |
Shenzhen Easydrive Frequency |
|||
|
Min.thickness |
5mm |
Execute device（contactor） |
China Zhengtai Product |
|||
|
Fixed mode of coil core mould |
Flanged flange |
signal element(photoelectric switches) |
Omron products |
|||
|
Rolling head |
4 heads single belt |
Pneumatic element |
Hengyi Products |
|||
|
Cutting method |
Single round knife cutting without resistance |
Adjustable Angle of the motor |
Jiacheng |
|||
|
Gluing method |
Single side/double sides gluing |
Synchronous control |
Pneumatic |
|||
|
Fixed-length mode |
photoelectricity |
Simultaneous tracking of the cutting pipe system |
Cylinder |
|||
|
Operator |
1-4persons |
|
||||
|
Paper core rolling speed |
3-15m/min |
Equipped Device
|
||||
|
Speed control |
Frequency converter |
Auto core dropping shelf |
Yes |
|||
|
Power supply |
380V three phase(can be customized) |
Belt diagonal |
Electric |
|||
|
Specification Size |
Belt tightening adjustment |
Mechanical adjustment |
||||
|
Machine size：L*W*H |
4500*2200*2050mm |
|
|
|||
|
Hub diameter |
269mm |
Automatic feed glue |
Pneumatic diaphragm pump |
|||
|
Hub height |
400mm |
Paper tape is automatically used for lubricating oil |
Automatic |
|||
|
Min.wheel distance |
1000mm |
Tension adjustment |
Mechanical adjustment |
|||
|
Max.wheel distance |
1300mm |
Paper frame type |
the whole paper frame |
|||
|
Weight |
4800kg |
Rolling belt |
Canvas belt/strip baseband |
|||
|
Drive System |
Attached parts |
|||||
|
Host Power |
22kw |
Volume tube plug |
1pcs |
|||
|
Wheel speed |
47r/min |
Tube belt |
1set |
|||
|
Wheel hub output torque |
2360N.m |
Application tool |
yes |
|||
|
Drive method |
Gear drive and chain drive |
Surface paper installation |
yes |
|||
|
Drive chain model |
32A |
|
|
|||
|
Wheel hub drive |
4 wheel drive |
|
|
|||
|
Cutting blade motor |
Stepping motor/gear motor |
|
|
|||
|
Bearings |
Harbin bearings |
|
|
|||
