Function description of Paper Tube Winding Machine:

The design concept is simple, compact and stable.

Production use reference: all kinds of film winding paper tube, paper tube for paper industry, various medium-sized industrial paper core tube.

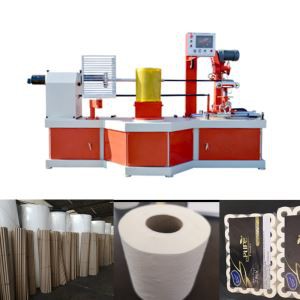

paper core making machine (7)

Paper Tube Winding Machine Features:

1. The main body is made from thick and heavy steel plate, welded by CNC cutting. The frame is stable and not easy to deform, and the vibration is small.

2. the main drive uses hard tooth surface full oil bath chain drive, low noise, low heat, high speed, high torque.

3. The main motor adopts vector type high torque frequency converter to adjust the speed.

4. using PLC control system to improve cutting response speed, cutting length control is more accurate than ever.

5. Configure the new operation panel and large-size color touch screen man-machine interface operation.

Specification of Paper Tube Winding Machine:

Technical Specification	Control System
Roll paper layers	3-21layers	PLC control	Taiwan TAIDA
Max. diameter	250mm	Human-computer interface	Color Touch Screen
Min. diameter	40mm	Program version	HT/4.0
Max. thickness	20mm	Frequency converter	Shenzhen Easydrive Frequency
Min.thickness	1mm	Execute device（contactor）	China Zhengtai Product
Fixed mode of coil core mould	Flanged flange	signal element(photoelectric switches)	Omron products
Rolling head	4 heads single belt	Pneumatic element	Hengyi Products
Cutting method	Single round knife cutting without resistance	Adjustable Angle of the motor	Jiacheng
Gluing method	Single side/double sides gluing	Synchronous control	Pneumatic
Fixed-length mode	photoelectricity	Simultaneous tracking of the cutting pipe system	Cylinder
Operator	1-2persons
Paper core rolling speed	3-20m/min	Equipped Device
Speed control	Frequency converter	Auto core dropping shelf	Yes
Power supply	380V three phase(can be customized)	Belt diagonal	Electric
Specification Size	Belt tightening adjustment	Mechanical adjustment
Machine size：LWH	400020001950mm
Hub diameter	269mm	Automatic feed glue	Pneumatic diaphragm pump
Hub height	400mm	Paper tape is automatically used for lubricating oil	Automatic
Min.wheel distance	950750mm	Tension adjustment	Mechanical adjustment
Max.wheel distance	1250mm	Paper frame type	the whole paper frame
Weight	4200kg	Rolling belt	Canvas belt/strip baseband
Drive System	Attached parts
Host Power	11kw	Volume tube plug	1pcs
Wheel speed	47r/min	Tube belt	1set
Wheel hub output torque	1560N.m	Application tool	yes
Drive method	Gear drive and chain drive	Surface paper installation	yes
Drive chain model	16A x 2
Wheel hub drive	4 wheel drive
Cutting blade motor	Stepping motor/gear motor
Bearings	Harbin bearings

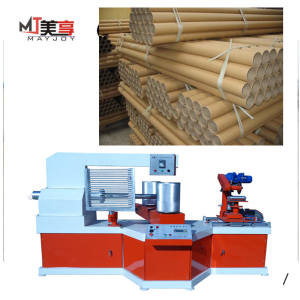

small paper core machine

Paper Tube Winding Machine
