Functions:

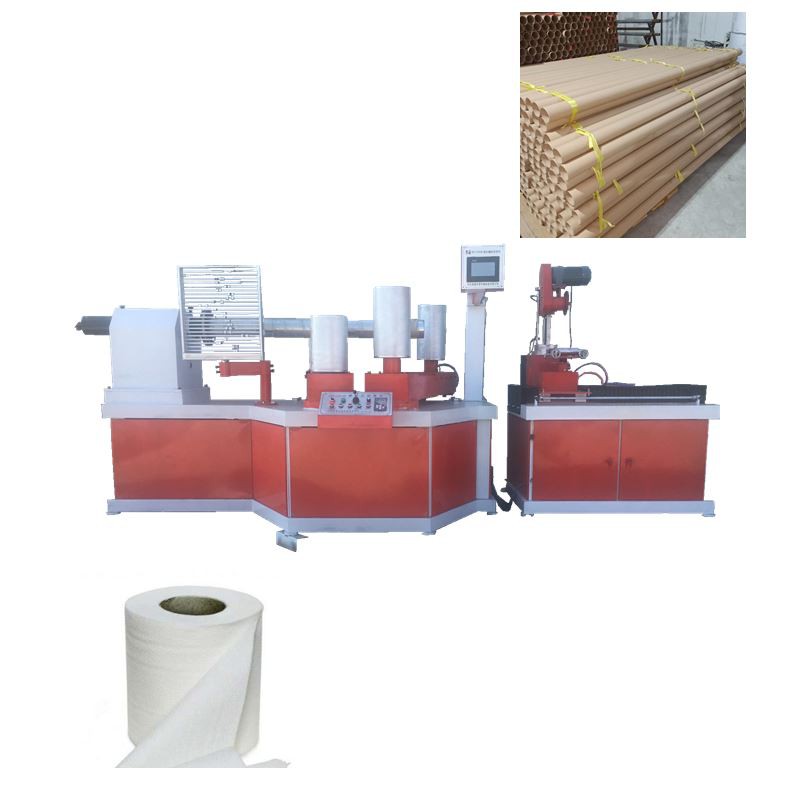

This automatic paper core making machine can make the paper core from fluting paper roll .the paper roll have been cut into with small width.It can coat glue on paper and rotate into paper core.

Paper Core Making Machine At Best Price

Paper Core Making Machine

Features:

1. frequency control system,low noise;

2.Saving power,it can save 50% electricity than ordinary electromagnetic speed adjustment;

3.Locating by infrared ray,automatic cutting;

4.Single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily;

5.Automatic Gluing,easy operation

6.The digital control panel set various operating function,can set arbitrary workings on the machine;

Paper Core Making Machine

Technical parameter:

Technical Specification			Control System
Roll paper layers	2-8layers		PLC control		Extra cost USD950
Max. diameter	150mm		Human-computer interface		Color Touch Screen
Min. diameter	20mm		Program version		HT/4.0
Max. thickness	8mm		Frequency converter		Shenzhen Easydrive Frequency
Min.thickness	0.5mm		Execute device（contactor）		China Zhengtai Product
Fixed mode of coil core mould	Flanged flange		signal element(photoelectric switches)		Omron products
Rolling head	Two heads single belt		Pneumatic element		Hengyi Products
Cutting method	Single round knife cutting without resistance		Adjustable Angle of the motor		Jiacheng
Gluing method	Single side/double sides gluing		Synchronous control		X axis servo screw and Z axis stepping screw
Fixed-length mode	photoelectricity		Simultaneous tracking of the cutting pipe system		Servo synchronous tracking cutting
Operator	1-2persons		Equipped Device
Paper core rolling speed	3-20m/min		Remote control		selectional
Speed control	Frequency converter		Auto core dropping shelf		Yes
Power supply	380V three phase(can be customized)		Belt diagonal		Electric
Specification Size			Belt tightening adjustment		Mechanical adjustment
Machine size：LWH		320020001950mm	The host angular		Selectional
Floor Space：L*W		16*7.5m	Lacking-paper automatic stop		Automatic stop of the bottom paper
Hub diameter		269mm	Automatic feed glue		Pneumatic diaphragm pump
Hub height		400mm	Paper tape is automatically used for lubricating oil		Automatic
Min.wheel distance		750mm	Tension adjustment		Mechanical adjustment
Max.wheel distance		950mm	Paper frame type		the whole paper frame
Weight		2800kg	Rolling belt		Canvas belt/strip baseband
Drive System			Attached parts
Host Power		5.5kw		Volume tube plug		1pcs
Wheel speed		47r/min		Tube belt		1set
Wheel hub output torque		1360N.m		Application tool		yes
Drive method		Gear drive and chain drive		Surface paper installation		yes
Drive chain model		12A x 2
Wheel hub drive		Two wheel drive
Cutting blade motor		Stepping motor/gear motor
Bearings		Harbin bearings
